Product Description

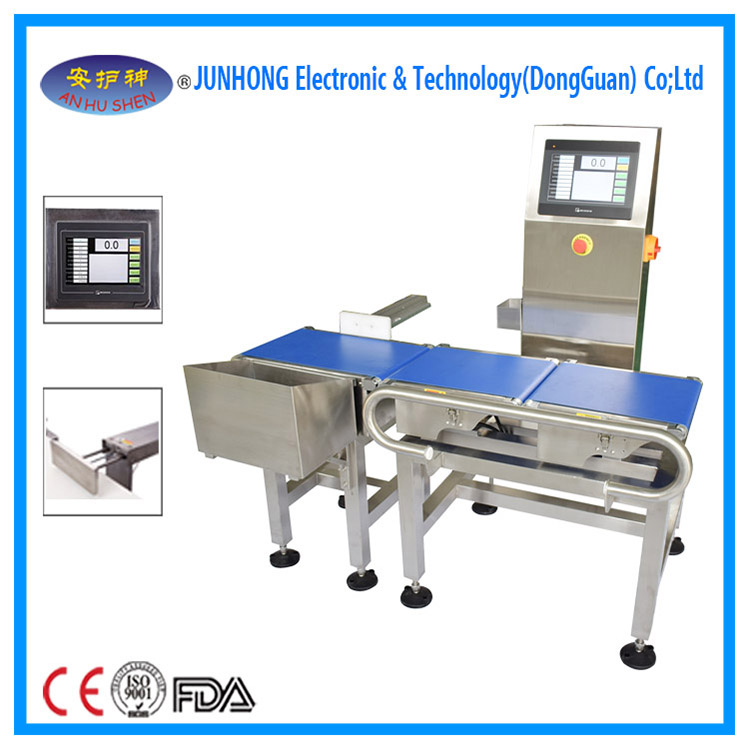

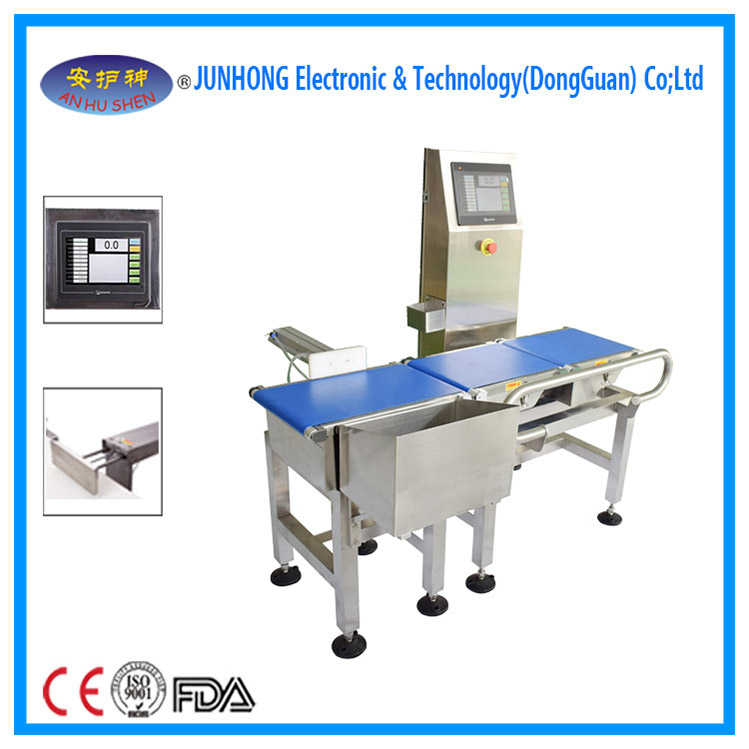

Digital Conveyor Belt Check Weigher Machine

     The digital check weigher machine is suited for check weight and sortweight of products, so that you can test the weight of a small single itemwhether is qualified or not. The conveyor belt of check weigher is alsogood, the food bags checkweigher can be connected with pipeline production. There are more details of food package conveyor checker weigher are as below.


Features of snacks weight checking machine

WEINVIEW PLC and 7″ touch screen, more stability andeasier to operate;

Apply HBM load cell ensure high accuracy and stability(original from Germany);

Solid SUS304 structure ensure stable performance andprecise weighing;

Reject arm, air blast or pneumatic pusher for selecting;

Belt disassembling without tools, which is easier toclean;

Install emergency switch at the size of machine, userfriendly operation;

Arm device show clients clearly for the productionsituation (optional);



Specifications

Model No. EJH-W220
Weighing range 10-1200g
Accuracy ±0.5
Mini Scale 0.1
Max selecting speed T/min  210
Conveying speed m/min 13-96
Detecting length 60-300mm
Detecting width  30-220mm
Detecting height  10-200mm
Weighing belt size(L*W) 450*220
Remarks Normal
Reject systems Option reject: Reject arm/pneumatic pusher/air blast/Shunt push rod/drop type/chute type
Reject direct Single direction, separate weight, Multi selecting or others
Product feeding methods production line dispatching, manual operation, vibration feeding or others
Main material Stainless steel 304
Control system WEINVIEW PLC and 7″ HMI
Power AC220V 50hz ~ 60HZ,0.5KW-1KW
Conveying direct Facing the panel from left to right (customizable)
Working environment Temperature 10~40 ,humidity 95% no condensation
