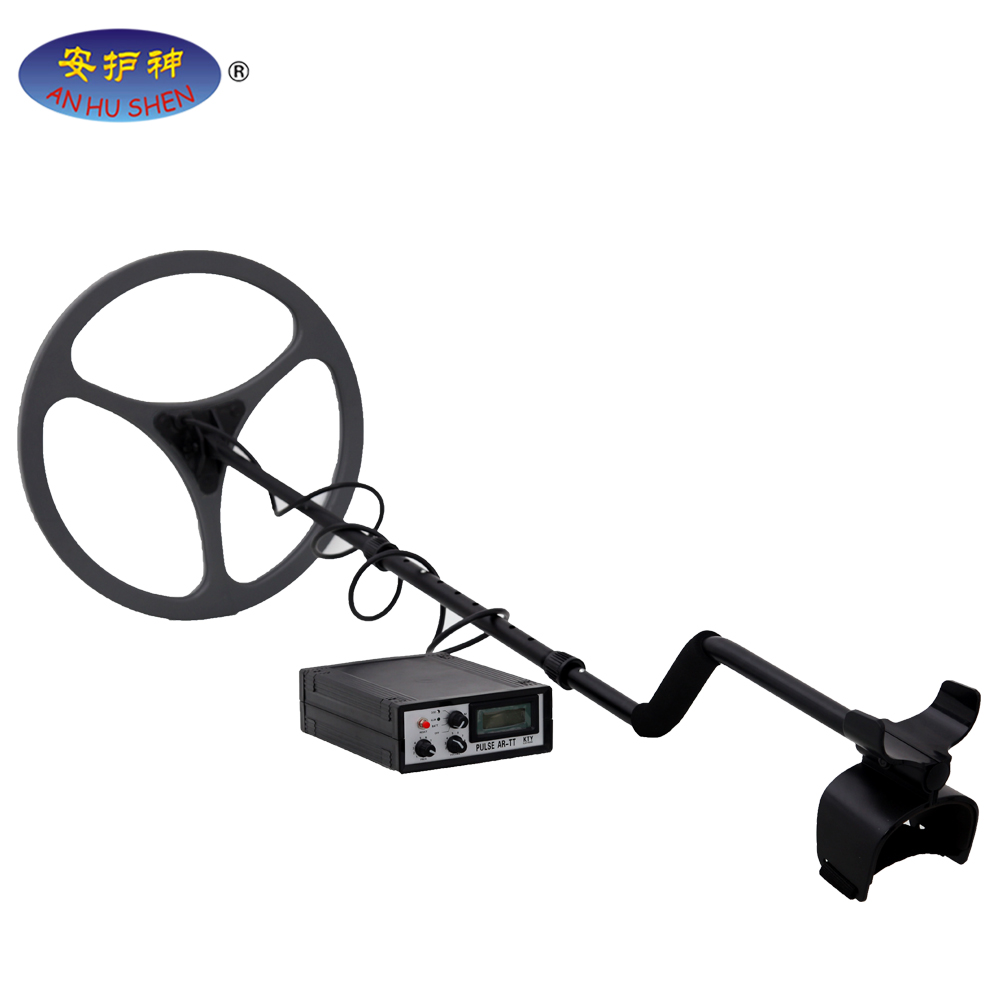

3M Deep Search Underground Metal Detector for gold
Place of Origin: Guangdong, China (Mainland)
Brand Name: Anhushen
Model Number: KTY
Searchcoil: 17.7”(45 cm)
Operating Principle: pulse induction balance
The depth: 3m(Max)
SupplyAbility: 200 Piece/Pieces per Week
Packaging & Delivery
Packaging Details: standard packaging for export.
Lead Time : within 2 working days after receive the payments.
KTY is a professional metal detector with metal discrimination and a high sensibility to precious metals. This metal detector kit consist of three different search coils and a search frame, which can help to locate objects in a depth of 3 meters
KTY Applies pulse induction technology of have decisive advantages in comparison to conventional VLF (very low frequency) detectors:
1.pulse induction system with microprocessor-controlled metal type display
2.undisturbed searching in mineralized soils and salt water
3.different search coils with automatic calibration
4.high sensitivity to gold and precious metals
5.convenient search and easy handling without the necessity of previous knowledge or preparatory training
Spacious search areas:

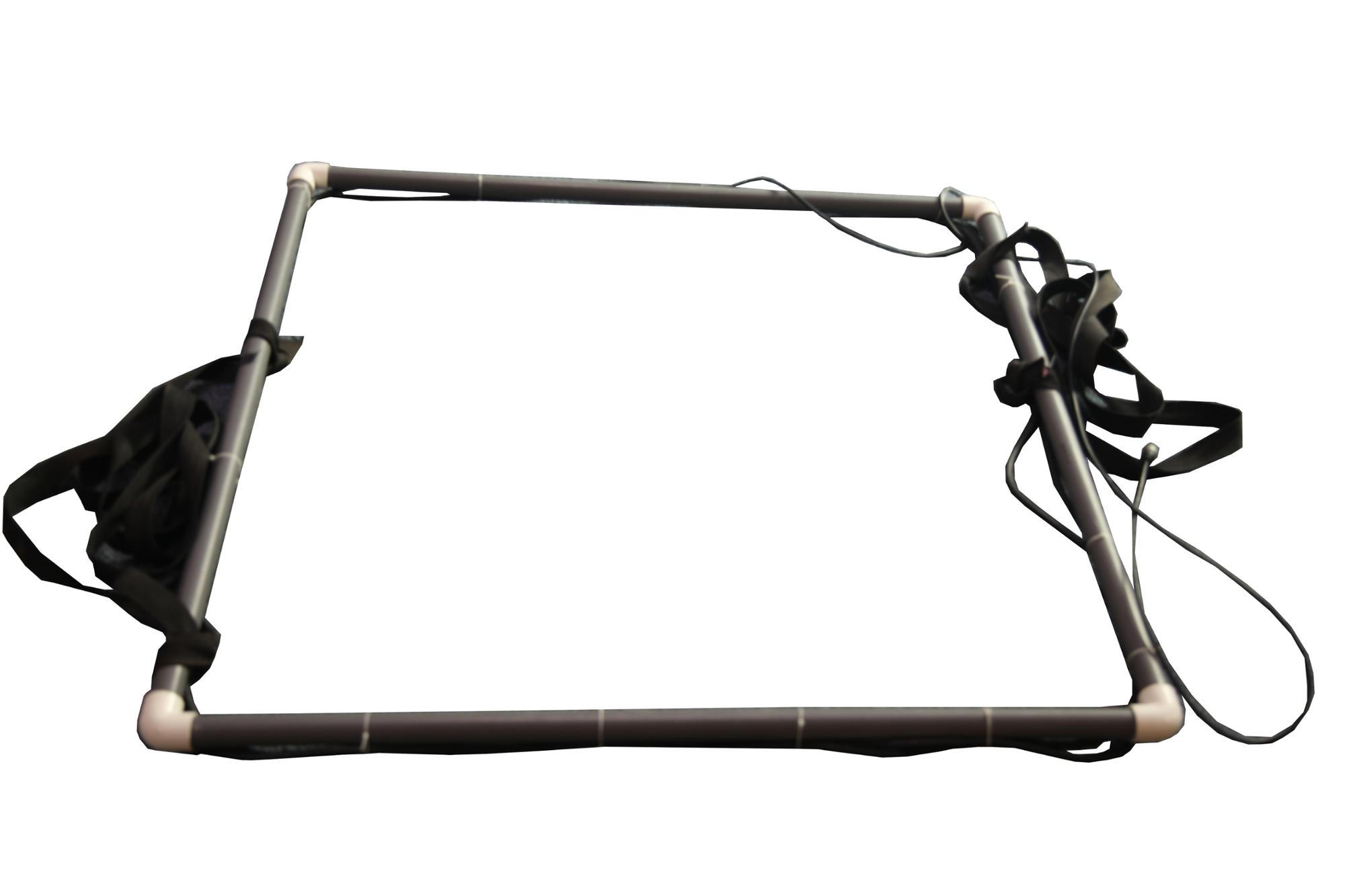

Only the 2x4m search frame (pulse induction technology) enables a comfortable and fast exploration of large areas. Example: the scanning of an area with the size of a soccer field will only take 3-4 hours, while the search with a conventional device with a panning coil would take several weeks.
The KTY was also developed for the search after large, deeply embedded metal objects and is especially suitable for professional seekers who want to search in wide-ranging areas in a speedy and efficient manner (small parts, e.g. rusty nails or bottle caps will not be shown).
Up to 3 m depth performance:
With pulse induction technology and big search coil (2x4m cable coil) it is possible to locate larger objects in a depth of up to 3 m. In comparison, conventional detectors with small coils only allow a search depth of at the most 1 m.
Exploration without disturbance:
Most of the mineralized soils contain stones with metallic characteristics which therefore are displayed as metal objects by the majority of detectors. Thus, a selective search is difficult.
These soils (the same goes for salt water) are no problem for KTY- with the Reset-button (automatic zero balance) most of the disturbing mineralized objects (which can lead to errors) will be neutralized.
For metal discrimination the KTY is provided with a micro-processor, controlled conductibility recording. Thereby metals like iron, copper, aluminum, gold or silver are discriminated and separately displayed.
The electronic unit is installed in a high quality case. In the front you will find the main knob, the reset button as well as the frequency and volume regulation. The digital display shows the different Sensitivity values.
1.ID (Discrimination Mode)
In this search mode the discriminator comes into operation. Thereby an optical and acoustical discrimination takes place. The different metals will be signaled through varying tones and conductivity values.
2.AM (All Metals Mode)
All metals will be visualized without discrimination (here the metals will not be examined for their conductivity).
This position has the advantage that you can detect with the highest sensibility; through the indication value one can evaluate the depth of the object. The lower the value number, the deeper the metal object is hidden under the surface. The shape of the object can be identified as well.
