Basic Info

Model No.: EJH-14

Material: SUS304

Additional Info

Packaging: Plywood carton

Productivity: 100 set/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 set/month

Certificate: CE, ISO 9001

Port: Shenzhen

Product Description

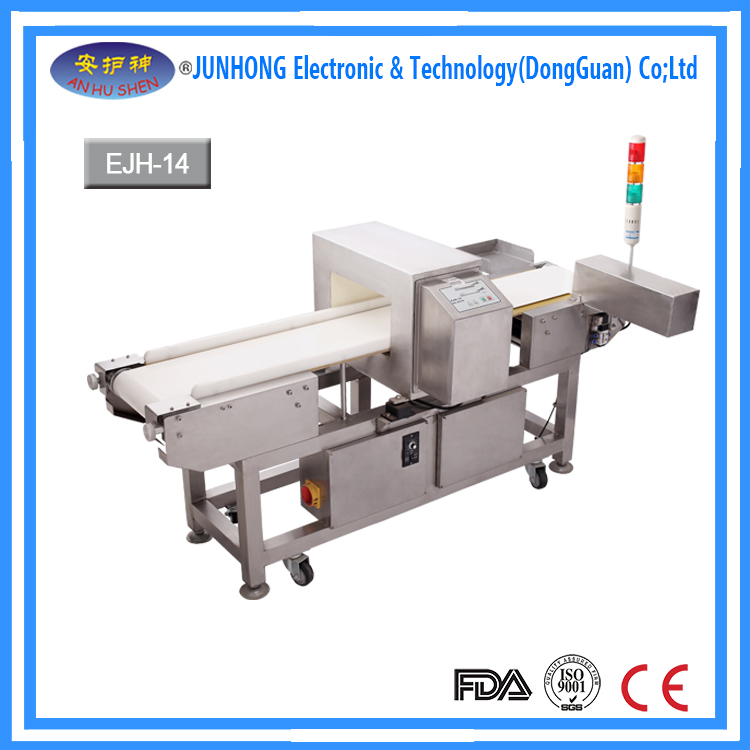

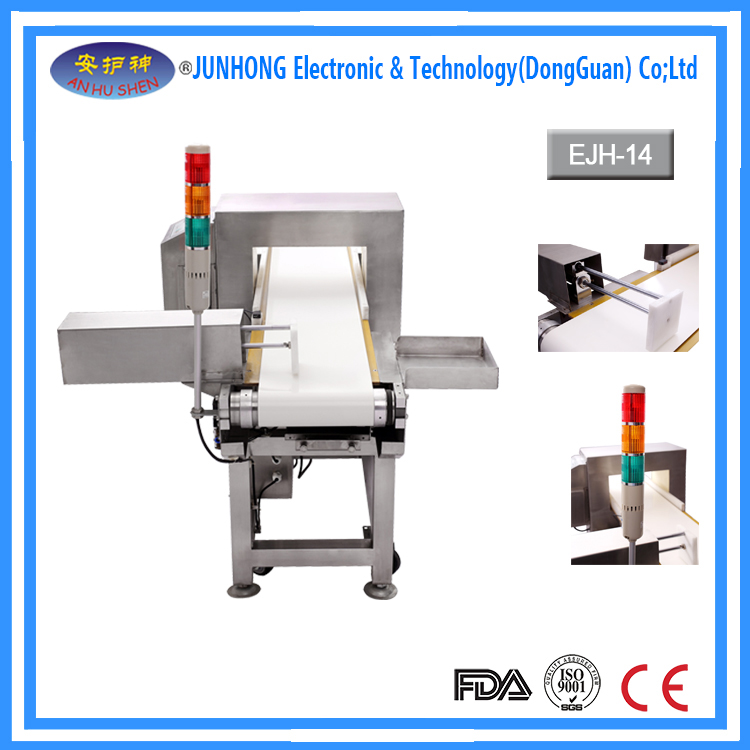

Food metal detector with auto rejecting system

    EJH-14 auto-conveying metal detector adopts advanced technology in the world. its appearance design is beautiful and performance is superb. This economical metal detector owns the ability of high sensitivity and stable behavior. It is best choice for small enterprises.

Scope ofapplication

Widely used for detecting the metal chipsinside the all kinds of sea-food , fishery, noodle, frozen food, , sugar, tea,pharmaceutical products etc.

 Productcharacteristic

1. Stainless steel shell , anti-erosion and long lifespan .

2. The conveyor belt is made of nonpoisonous material

3. Strong transport drive, all the products below 25kgcan be conveyed to be checked.

4. Quick convey speed, it is specially suitable forpipeline operation.

5. When sensor detect metal part, buzzer will sound andconveyor belt will stop.

6. The performance of the belt conveyer is complied withtheAmericanfood sanitation standard (FDA), it can be used for transporting theunpacked food directly.

7. Can match the pipeline operation or automatic controldevice.

8 .conveyor belt speed 15 meter/minute to 35 meter/minute.

Technicalparameters

1. Inspection window size:

Normal height of inspection window(mm): 150

Normal width of inspection window(mm): 400

The measures of the inspectionwindow can be designed according customers requirement.

2. Sensitivity:  ferrous 1.0mm .non-ferrous 1.5mm,stainlesssteel 2.0mm (empty loaded sensitivity)



Parameter

Electrical source:  220V 50Hz
Power :  120W

---
