Short Description:

Overview Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: anhushen Model Number: JH-9000C Usage: public security checking Application: airport, customs, government Shape: cylinder-shaped Warranty: ...


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
anhushen
Model Number:
JH-9000C
Usage:
public security checking
Application:
airport, customs, government
Shape:
cylinder-shaped
Warranty:
1 Year(labor and parts)
Color:
Grey
name:
walk through metal detector
SupplyAbility
SupplyAbility:
400 Set/Sets per Month

Packaging & Delivery
Packaging Details
2 stronger carton box ,WOODEN, AS YOU REQUIRED
Port
shenzhen
Lead Time :
5~7 working days

{“detailModule.supplyAbility.tip”:”If you finish the payment today, your order will ship out within the delivery date.”,”detailModule.supplyAbility.title”:”SupplyAbility”}

.richtext [data-maya] { width: 750px; font-size:14px; }

JH-9000C 18 zones Walk Through Metal Detector



JH series walk through metal detector is a CE approved concealed weapons detector.

This walk-through meta l detector which uses advanced magnetic technology to accurately pinpoint the location, size,

and number of concealed weapons, such as knives and guns. Personal artifacts such as coins, keys or belt buckles will not set off the alarm. The walk-through metla true multi-zone metal detector with new advanced features.

It offers superior performance for demanding high security applications.



Reasons to choose JH walk-through metal detector:
1. Deters crime
2. Improves traffic flow
3. Reduces the number of required searches
4. Reduces workload of security personnel
5. Reduces false alarms
6. Increases Building safety with minimal cost
7. Durable material adoption



This walkthrough metal detector can be used in the factory, prison, court, exhibition hall, stadium and entertainment lieu,

where the prohibited articles need to be checked for safety.



Technical parameters:

Outer frame : 2230(h) *970(w) *345mm(d)

Inner frame : 2000(h) *720(w) *280mm(d)

Working power: AC:110V-220V

Work environment : -20°C— +65°C

Brief description and advantages:

Detecting zones: 18 zones

Complete waterproof, it is passed IP65 certification

Cylindrical and attractive design (owning appearance design patent)

Sensitivity from 0-255, total 255 levels.

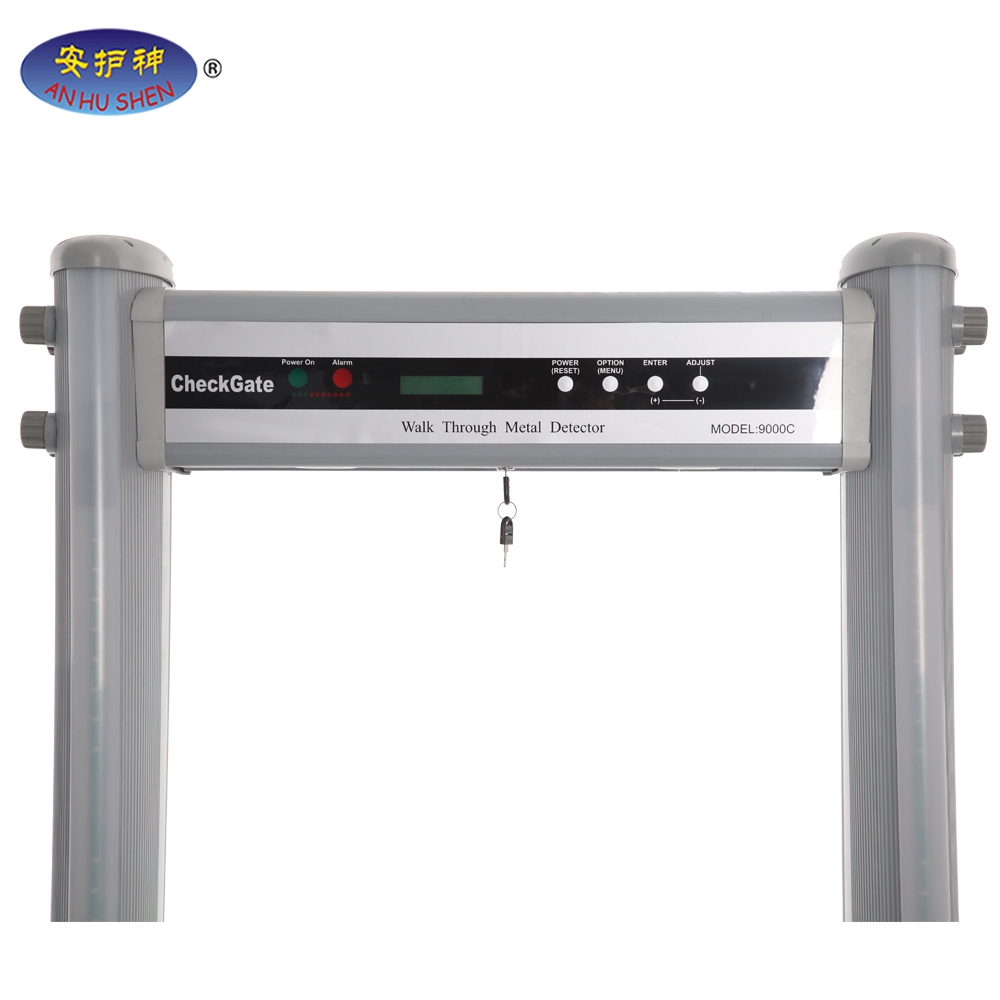

Led display on the both sides

DSP and Microprocessor controlled

Light weight

Optional built in back-up battery

Sound and light alarm

Warranty :Limited12 months, parts and labor

PACKING:One set gate should be packed in one carton:

Carton size:250*75*210CM

Total Cross weight of one set: 65kg



Details Feature:

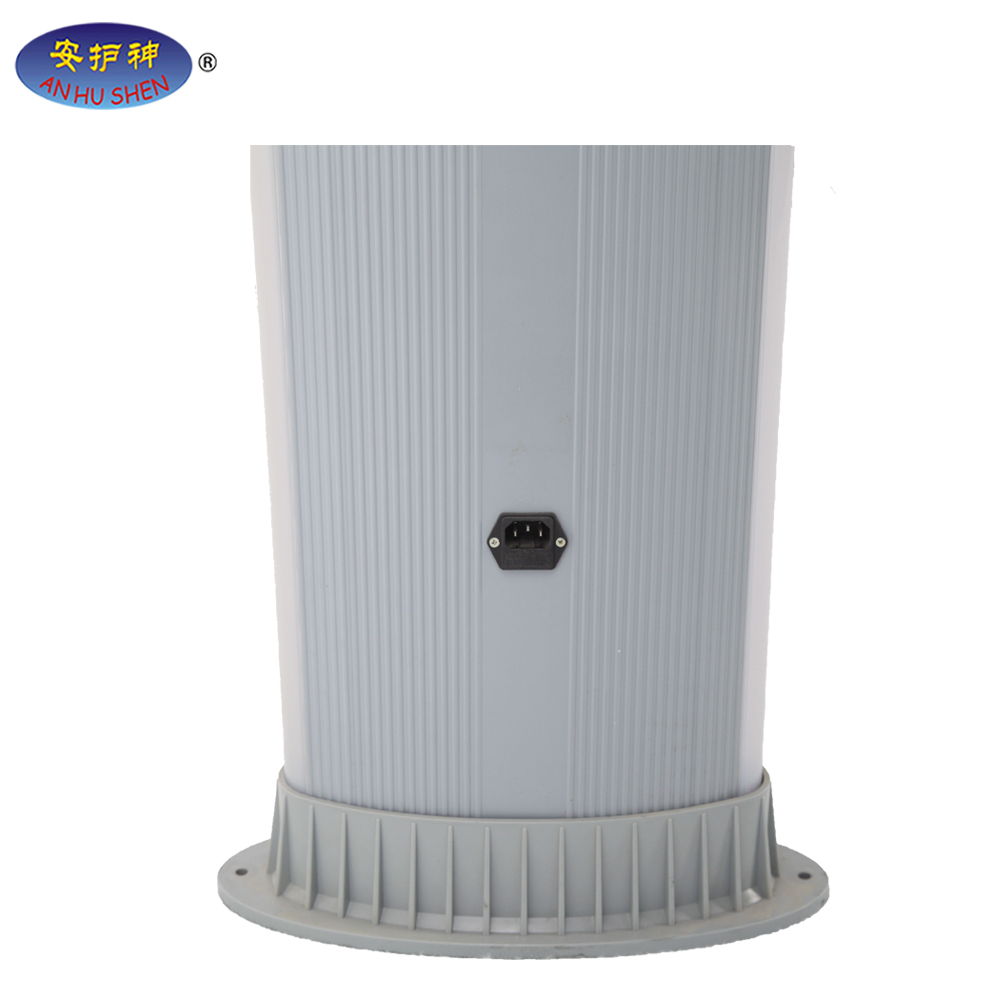

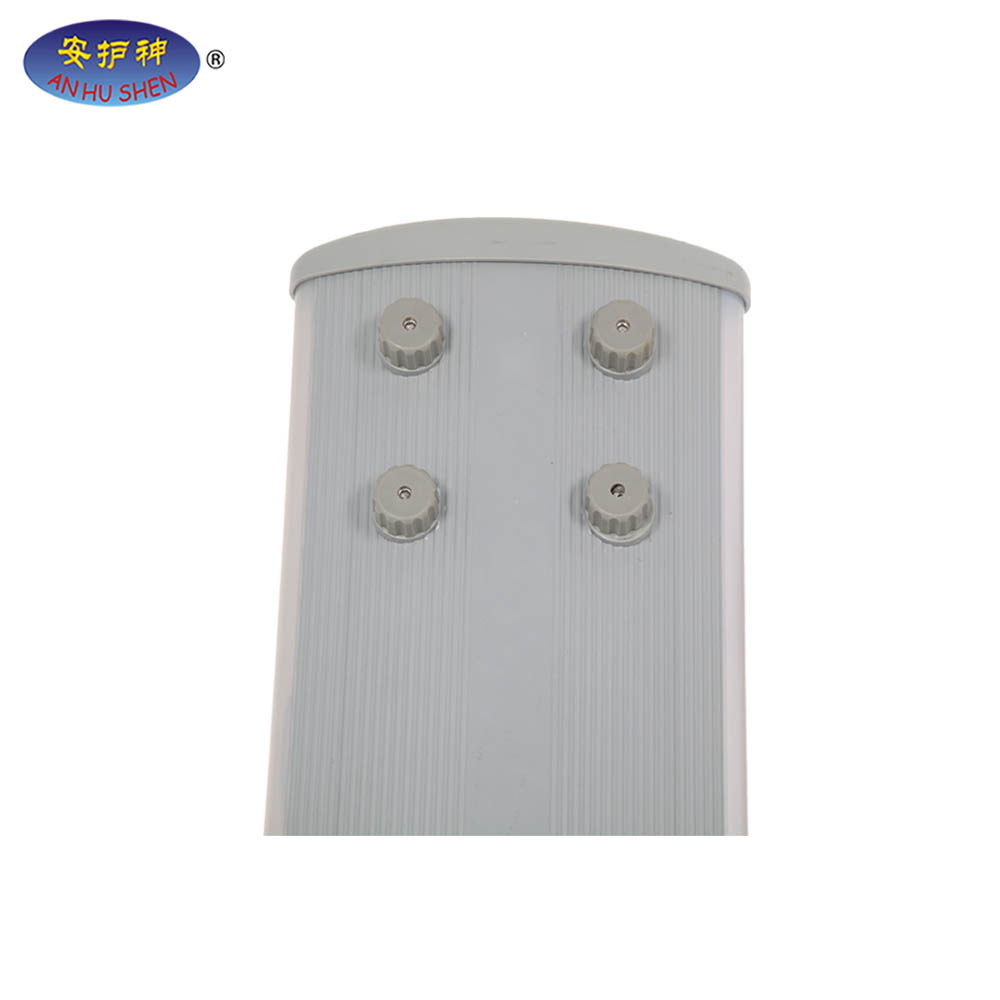

1. The whole product is consisted of two parts: Left-right detecting gatepost+Mainframe.

2. Left-right detecting gate board is unified detecting coverage from its top to bottom;therefore, it is called a Sole position metal detecting gate.

3. As indicated by the picture, the left-right detecting gate board is formed up by unified mold, and each of other parts is utilizing waterproof designs, all these make the product reach the highest standards of waterproof and power leakage protection; it may work properly as normal even the whole device is thoroughly put into water.

4.The structure is in an exquisite design, with light weight and solid stand;therefor, the product can be assembled, disassembled or moved easily

5.Unique design of integrated circuits, which is stable in function, strong in anti-interference and free from mistakes in reporting

6. Has the function of password protection to prevent any hostile change of parameters by any unauthorized person

7. Has the function to adjust the audio tones, adapting to different usage environments

8. Information will be marked down on the front panel e.g. Number of persons passed-by, times of alarm, strength of interfering signals, etc.

9. Sensitivity can be adjusted in any degree within its scope;therefore,it can meet the customer’s demand to reject the items e.g. Belt buckle, gold or silver jewelry, ect.

10. The products does no harmless to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc, etc.
