Short Description:

Overview Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: AN HU SHEN Model Number: EJH-XR-4023 Usage: Food detector Color: Silver Model No.: EJH-XR-4023 Alarm style: sounds and light ...


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AN HU SHEN
Model Number:
EJH-XR-4023
Usage:
Food detector
Color:
Silver
Model No.:
EJH-XR-4023
Alarm style:
sounds and light
Orientation:
Vertically Upward
Angle:
60°
Tube current:
0.4~0.5MA(adjustable)
Conveyor speed:
20m/min
Conveyor max load:
5KG
SupplyAbility
SupplyAbility:
500 Set/Sets per Month

Packaging & Delivery
Packaging Details

<dd class="do-entry-item-val" title="Standard packaging for export
EJH-xr-4023 X-ray food inspection equipment,Food X-ray machine”>Standard packaging for export
EJH-xr-4023 X-ray food inspection equipment,Food X-ray machine

Port
Shenzhen
Lead Time :
15~20 days upon receive your payment

{“detailModule.supplyAbility.tip”:”If you finish the payment today, your order will ship out within the delivery date.”,”detailModule.supplyAbility.title”:”SupplyAbility”}

.richtext [data-maya] { width: 750px; font-size:14px; }

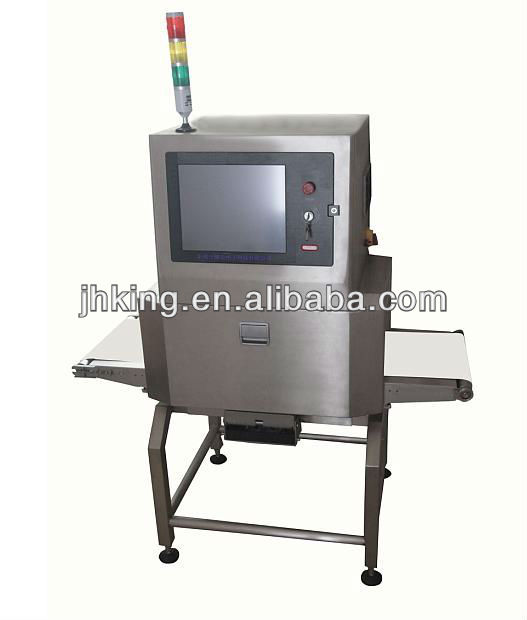

  X ray Food scanner-EJH-XR-4023





Feature:

1) High sensitivity, it not only can detect metal, but also can detect glass, stone, plastic and other foreign objects.

2) Low price

3) Working stable
4) Can detect high salt products and sausage with metal button.
5) No product effect and it can detect high salt products and sausage with metal button.

6) Can penetrate aluminum bag package and detect whether has foreign objects or not. (such as less than Φ0.6mm

iron and stainless)

7) Product customized

8) CE and ISO 9001 certification



Application:

X-ray Inspection system adopted to detect the contaminants in the food, including the metal , glass, ceramic, stone, bone, hard rubber, had plastic and so on, at the same time, it also has the function to detect the product defect, such as the packaging crack, bubble, content defects etc. to achieve the complete finished product detection.







1

Model name

EJH-XR-4023



2

Sensitivity

SUS wire0.3*2mm,SUS ball 0.4mm,ceramics 1.0mm,glass stone 2.0mm,stone 2.0mm(above sensitivity are machine in blank running )

Accurate sensitivity have relationship with product shape,size, and density

3

X ray tube

80KV, 2.5mA (200W input ball tube )

Input ball tube

4

Safety

Disclosure<0.5 (Have lead curve protection )

Conform to national standard

5

Screen manner

17inches LED display (Touch pad control )

Touch pad panel (keyboard /mouse)

6

Interface language



XP system ,Chinese,english and other country language support ,

Can expand

7

Detect tunnel size Can expand

400(width )×230(height )mm



8

Width of belt

400 mm



9

Belt speed

20 m/min



10

Belt max load

5 kg(min )/ 10 kg(max)



11

Work power

220VAC(±10%) 50±3Hz,1.2 KW



12

Machine full weight

600~800 kg



13

Work environment

0°C~40°C;20~80%



14

Housing

Stainless steel (SUS304)



15

Alarm

Auto stop by sound and light alarm , or can choose rejector system



16

Product records up

Can storage 200 kinds of different product











































































Parameter Standard



Primary Specification



Tunnel Size…………………………. 400(width)×230(height)mm



Conveyor Speed …………………….. 20 m/min



Conveyor Maximum Load ………… 5 kg



Single Check Dose…………………… < 1



X-ray Leaking Dose……… ………… <0.5



X-ray Generator



Beam Direction                 Topdown



Anode Current………… ………   2.5mA



Anode Voltage………… ………… 80 kV



Divergence Angle of Beam………… 60°



Cooling/Duty Cycle………………… Oil Cooling and wind Cooling



Image System



X-ray Sensor       ……………………   Photodiode Array Sensor



Monitor…………………………… 17 Inch LCD Touch Screen



Operational Parameter



Operation Temperature/Humidity……… 0°C~40°C



Storage Temperature/Humidity ………… -20°C~60°C



Operation Power………………………… 220VAC(±10%) 50±3Hz



Power Consumption………………………1.0 KVA(maximum)



Noise level……………………… …… <65dB







Universal parts :motor ,switch,button



Easy broken parts :Relay; :Fuse





X ray food metal detector machine





0001
002
