Short Description:

Overview Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: AN HU SHEN Model Number: EJH-28 Electrical source: AC110V/220V/380V 50/60Hz. Power: 120w Highest Sensitivity: 0.5mm FE Meterial: SUS 304 and 201 certificate: CE lenght: 1600mm Application: Lemon processing SupplyAbility SupplyAbility: 50 Piece/Pieces per Month Packaging & Delivery Packaging Details 174*90*103cm Port SHENZHEN Lead Time : within 15-20 wo...


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AN HU SHEN
Model Number:
EJH-28
Electrical source:
AC110V/220V/380V 50/60Hz.
Power:
120w
Highest Sensitivity:
0.5mm FE
Meterial:
SUS 304 and 201
certificate:
CE
lenght:
1600mm
Application:
Lemon processing
SupplyAbility
SupplyAbility:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
174*90*103cm
Port
SHENZHEN
Lead Time :
within 15-20 working days after getting the payment

//

  Food Metal Detector for dry Lemon processing

Back to>>Junhong Electronic & Technology (Dongguan) Co., Ltd.





Product Description

 Introduction

   Advanced technique of electrical & mechanism designs is adopted for EJH series digital intelligent auto-conveying metal detector which have reasonable structure, beautiful appearance, highly detection sensitivity and stable behaviors. It is characterized by high detecting sensitivity and stable & reliable performance.
Comparing with traditional simulation detector , the function is more complete , the capability is more stable and dependable. It accord with the demand of certification-HACCP, QS, ISO9001, FDA.



Feature

  1. LCD display, DSP digital signal processing technology, OSD menu in Chinese and English
  2. Recording and memory function: able to store up to 20 kinds of different products.
  3. Dual- channel and dual-frequency detecting to detect Fe and non-ferrous metals like stainless steel respectively.
  4. 360 degree phase identifying technology adopted to decrease product effect and improve sensitivity in non-ferrous metal detecting.
  5. With high stability: no alarm even being hammered.
  6. The Food industry conveys belt confirms to FDA standard and can be used to convey unpacked food directly.
  7. Can be integrated into production line or automatic equipment.

Way of alarming: sound and light alarm, stop running automatically.



Performance
Detection style: digital intelligent with LCD display
Language : English,
Motor power: 200w/400w
The main material: SUS 304
Speed of transmission: 18-40 meter/minute
height of inspection window
(cm):10
width of inspection window
(cm):40

Highest Sensitivity: Ferrous 0.5mm diameter ball

                Non-ferrous:1.0mm diameter ball

                SUS: 1.2 mm diameter ball
Alarm: Audible and visual with automatic stop can install with the auto-rejection equipment according customer’s requirement.
Power: AC110V/220V/380V 50/60Hz.



Table of Sensitivity

  25*8cm 30*10cm 40*15cm 50*20cm 60*30cm
FE 0.5mm 0.8mm 0.8mm 1.0mm 1.5mm
SUS 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm

Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on condition of different products being tested.

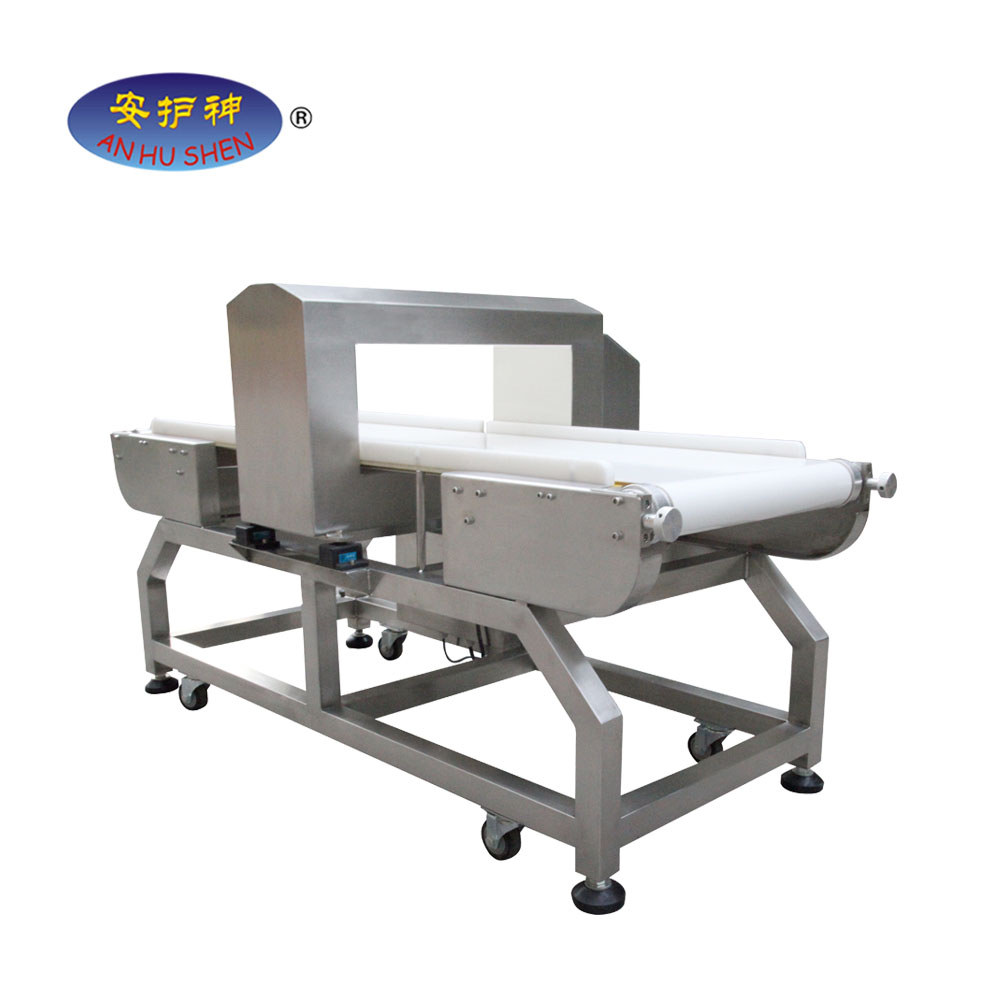

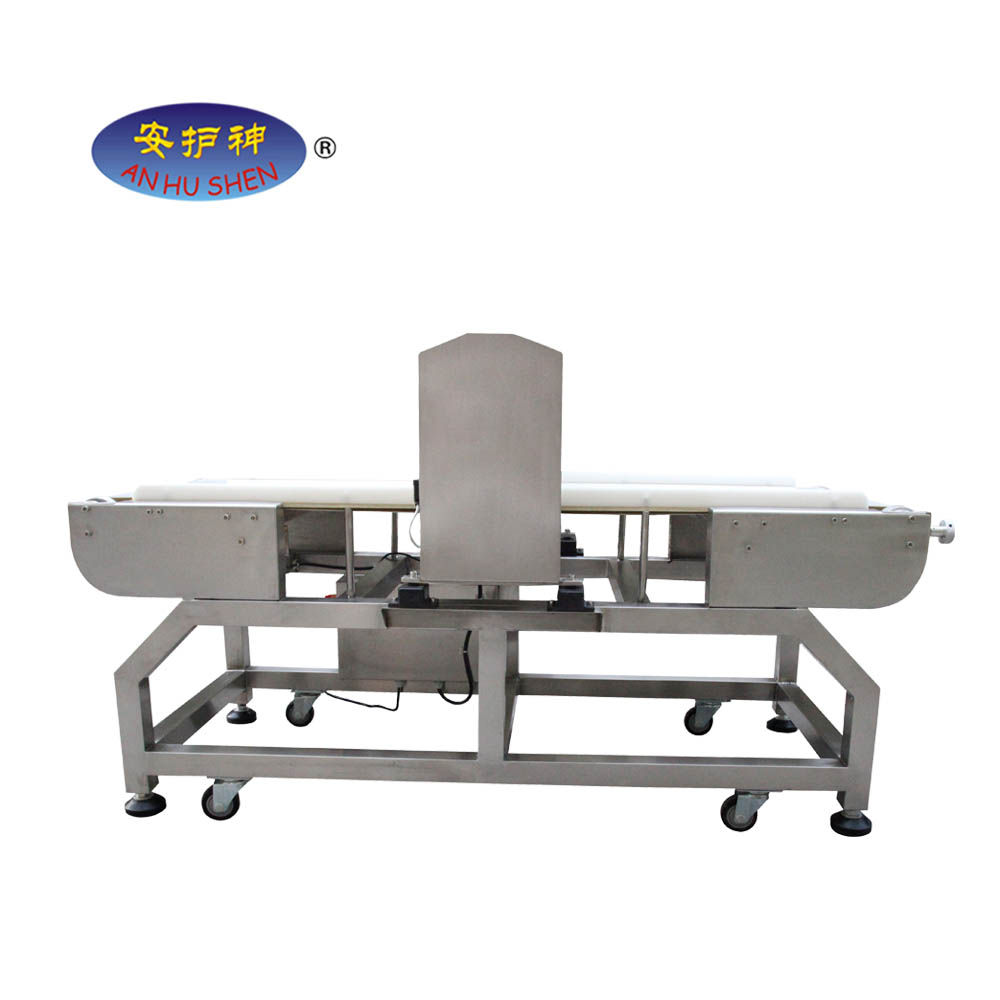

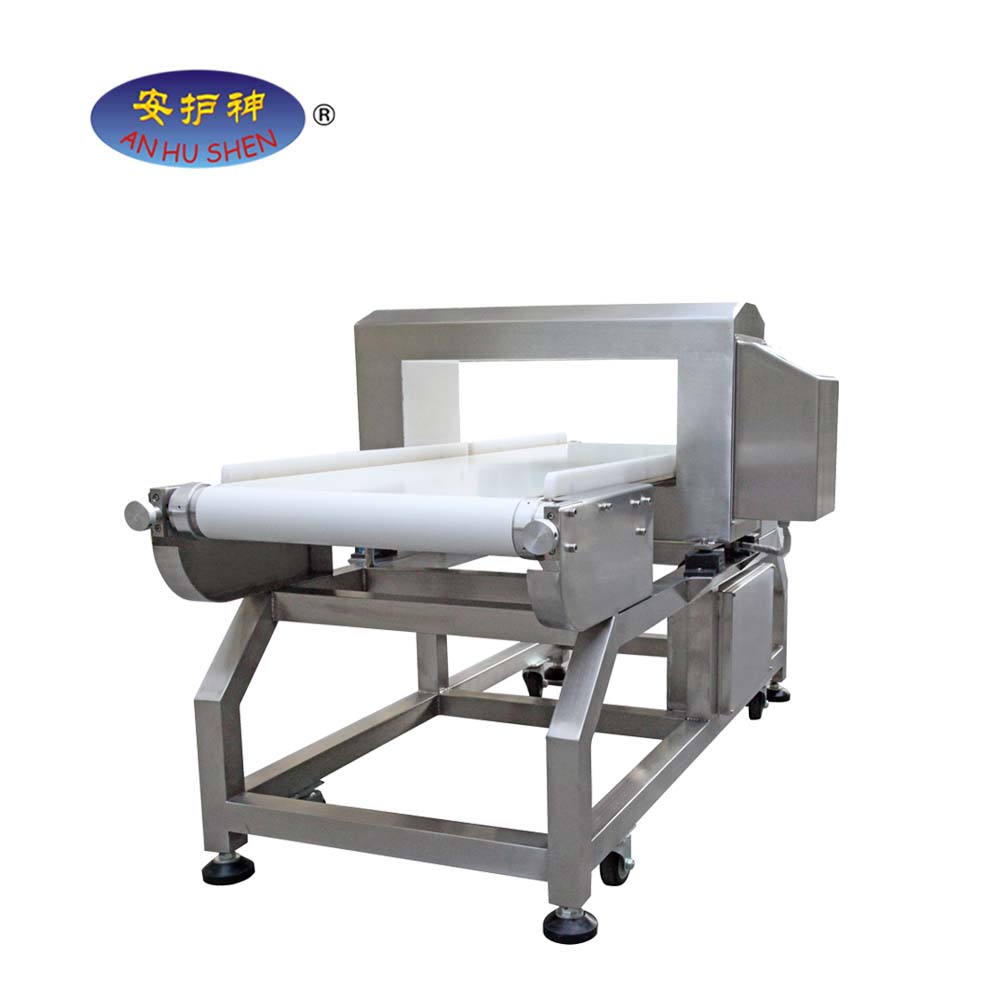

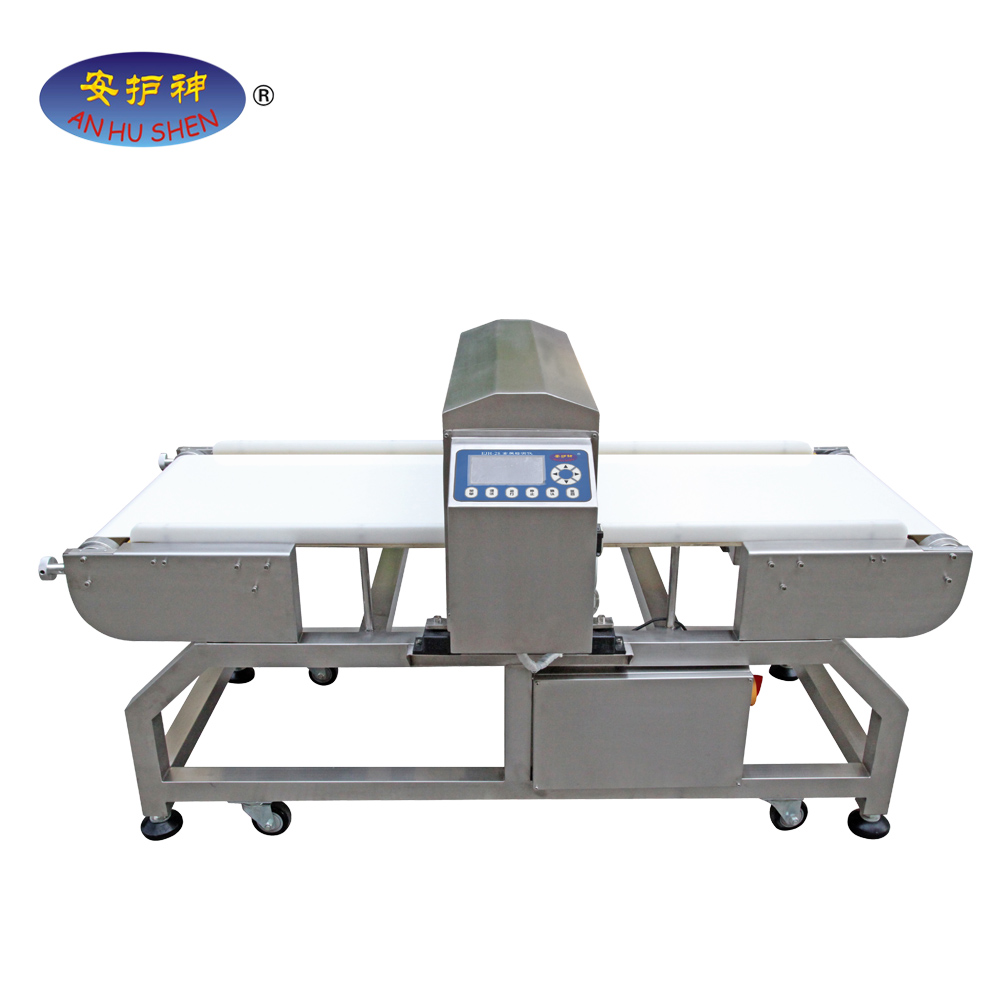

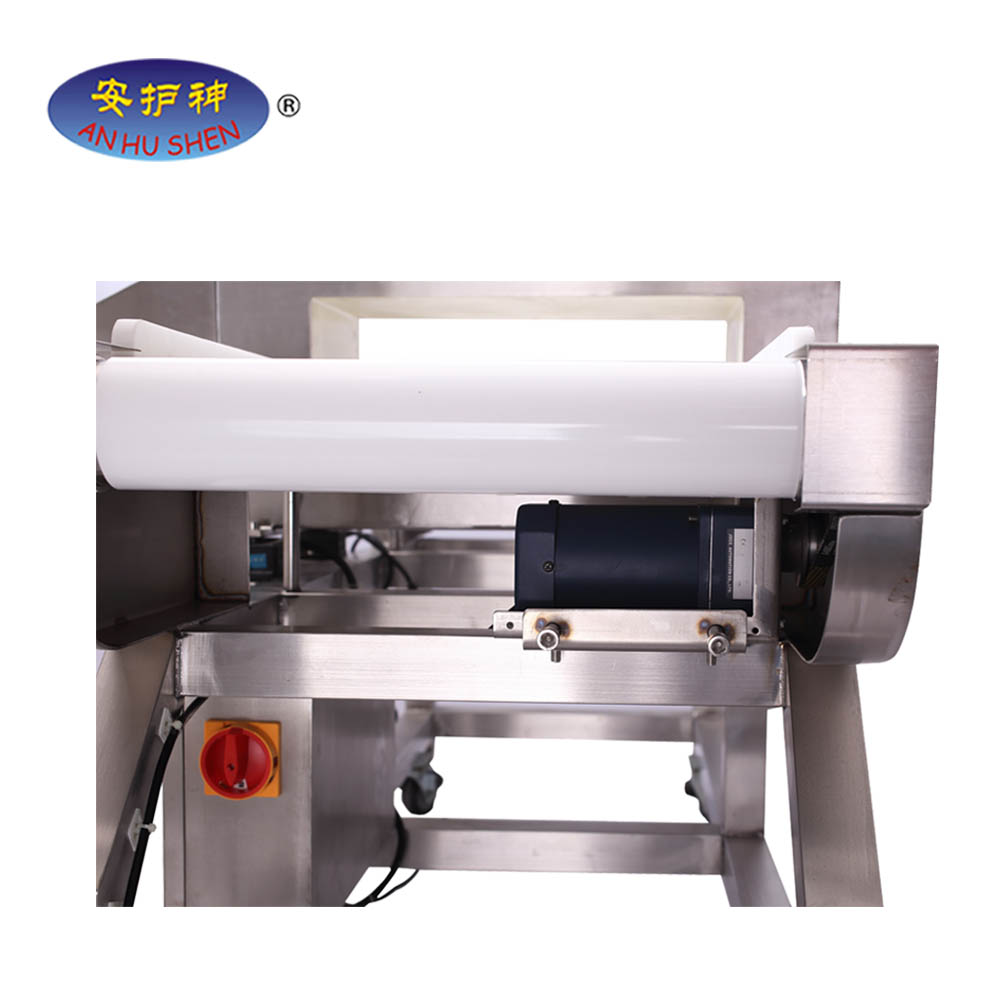

Product Photo:




Packaging & Shipping



packing and shipping.jpg





Company Information




Certificates:






food metal detector.jpg





Factory

_
