Basic Info

Model No.: JH-9000C

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Prison, Museum

Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Port: Shenzhen

Product Description

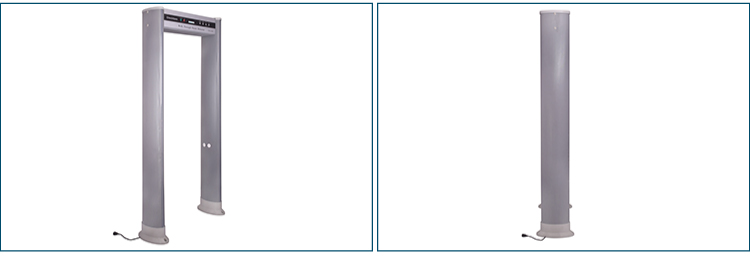

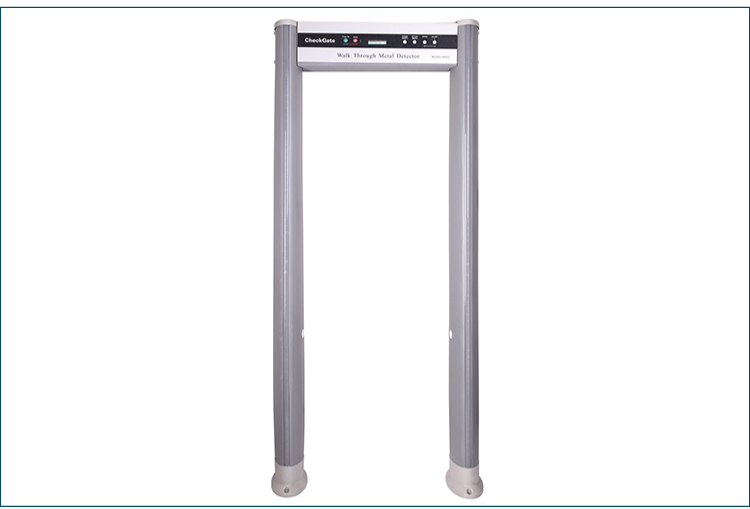

Column Shape Walk Through Metal Detector

    The JH-9000C is a Column Walk Through Metal Detector designed to meet the specific security needs of public facilities such as schools, hotels, amusement parks and city halls. The JH-9000C Elliptic Walk Through Metal Detector is compact and lightweight, making this unit adaptable to any surroundings. The cylinder design of walk through metal detector gate is very suitable for the most discrete applications.

Specifications

18 multi-zone detection
255 level sensitivity
waterproof IP55
Network connection
walk through metal detector suppliers

18 multi-zone walk thru security metal detector(JH-9000C)

Technical parameters:

Outer frame : 2230(h) *970(w) *345mm(d)

Inner frame : 2000(h) *720(w) *280mm(d)

Working power: AC:110V-220V

Work environment : -20°C- +65°C

Detecting zones: 18 zones

Complete waterproof, it is passed IP65 certification

Cylindrical and attractive design (owning appearance design patent)

Sensitivity from 0-255, total 255 levels.

Led display on the both sides

DSP and Microprocessor controlled

Light weight

Optional built in back-up battery

Sound and light alarm

Warranty :Limited12 months, parts and labor

PACKING:

One set gate should be packed in one carton:

Carton size:250*75*210CM, 76*47*28cm

Total Cross weight of one set: 65kg

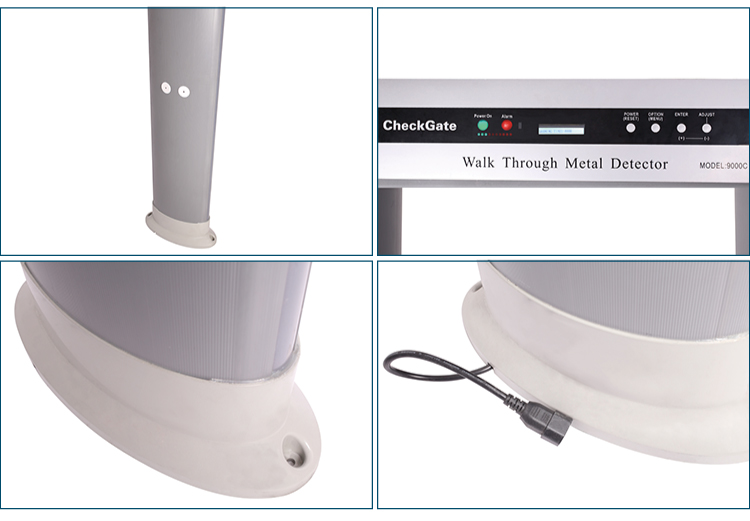

Details Feature:

1. The whole product is consisted of two parts: Left-right detecting gatepost+Mainframe.

2. Leftright detecting gate board is unified detecting coverage from its top to bottom;therefore, it is called a Sole position metal detecting gate.

3. As indicated by the picture, the leftright detecting gate board is formed up by unified mold, and each of other parts is utilizing waterproof designs, all these make the product reach the highest standards of waterproof and power leakage protection; it may work properly as normal even the whole device is thoroughly put into water.

4.The structure is in an exquisite design, with light weight and solid stand;therefor, the product can be assembled, disassembled or moved easily

5.Unique design of integrated circuits, which is stable in function, strong in anti-interference and free from mistakes in reporting

6. Has the function of password protection to prevent any hostile change of parameters by any unauthorized person

7. Has the function to adjust the audio tones, adapting to different usage environments

8. Information will be marked down on the front panel e.g. Number of persons passed-by, times of alarm, strength of interfering signals, etc.

9. Sensitivity can be adjusted in any degree within its scope;therefore,it can meet the customer’s demand to reject the items e.g. Belt buckle, gold or silver jewelry, ect.

10. The products does no harmless to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc, etc.

---
