Short Description:

Basic Info Model No.: JH-1S Certification: ISO, CE Customized: Non-Customized Form: Other Application: Station, Prison, Museum Outer Frame 2240×670x850mm: Inner Frame 2000x700mm Additional Info Packaging: paper carton Productivity: 200 pcs/month Brand: Anhushen Transportation: Ocean,Land Place of Origin: China Supply Ability: 200 pcs/month ...


Product Detail

Product Tags


Basic Info

Model No.: JH-1S

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Prison, Museum

Outer Frame 2240×670x850mm: Inner Frame 2000x700mm


Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Port: Shenzhen


Product Description

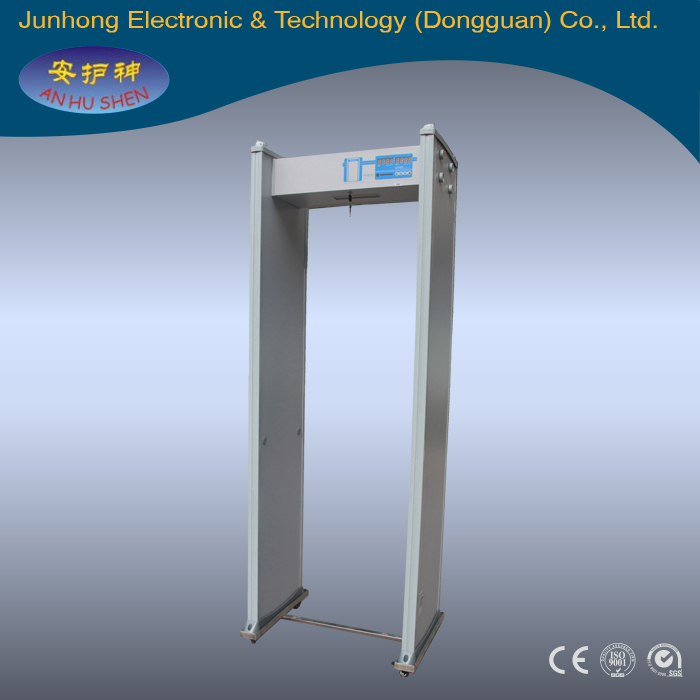

High sensitivity walk-Through metal detector for airport

    The system of the JH-1S walk through metal detector have the function of display environment monitoring data.The metal detector for airport is  highly efficient,highly sensitive and highly stable.Besides ,1 computer can connect many sets of door frame metal detector.The user can preset the weigh, volume, size, position of metal and avoid false alarm caused by keys, jewelry, buckle etc. There are more details of archway metal detector as below.

Specification of security metal detector



Outer frame

2240×670x850mm



Inner frame

2000x700mm



The case packing size

755×435×255mm



Door frame packing size

2290×715x200mm



N.W  case/detector gate

59.1KG



G.W case/detector gate

66.1KG



working environment

AC90V~240V 50/60Hz



Power consumption

20W



Working fluency range

1-50 frequencies



Working environment

-20~65



Installment environment

Metal less space 100(W)*200(L)



Sensitivity level for each zones

The highest sensitivity≥10g metal





Technical Standard

Eliminate personal metal objects

Yes

double high light digital display(RED, Green)

NO

5.7 inch LCD screen/long strip

NO

Integrated panel mode (Four key)

Yes

One-click remote control mode

NO

several sets network interface

Yes

External control alarm device port

Yes

Secondary developed port/ upgrade port

Yes

Count the pass person

Yes

Count the alarm person

Yes

Inquire the pass person(In and out)

NO

  Double password protection

Yes

Multi zones detect and alarm simultaneously

Yes

Intelligence detect and distinguish bulky goods

Yes

Super brightness patch intelligence district zone alarm LED

Yes

Super brightness patch double row LED

Yes

Ten optional working fluency

NO

Fifty optional working fluency

Yes

Silent alarm mode

Yes

Adjustable for alarm sound

Yes

Ten sound alarm mode

Yes

Front and rear side alarm LED

Optional

Front side alarm LED

NO

Front 4 zones alarm LED

Yes

Front and rear alarm LED

Yes

Adjustable sensitivity for each zone

Yes

Adjustable sensitivity for each zone (0-200 grade)

Yes

Adjustable sensitivity for each zone (0-120 grade)

NO

Optional security grade (1-6 grade)

NO

 Optional security grade (1-20grade)

Yes

Independent 4 detection sensors with 4 overlapping zones

Yes

Independent 12 detection sensors with 12-18 overlapping zones/optional

Optional

Battery life: 2 hours/optional

Optional

Battery life: 8 hours/optional

Optional

Restore factory setting

Yes


Metal Detector for Airport
