Short Description:

Basic Info Model No.: JH-8018Z Certification: ISO, CE Customized: Non-Customized Form: Other Application: Station, Prison, Museum Power: 12W Additional Info Packaging: paper carton Productivity: 200 pcs/month Brand: Anhushen Transportation: Ocean,Land Place of Origin: China Supply Ability: 200 pcs/month Certificate: ISO ,CE Port: ...


Product Detail

Product Tags


Basic Info

Model No.: JH-8018Z

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Prison, Museum

Power: 12W


Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Port: Shenzhen


Product Description

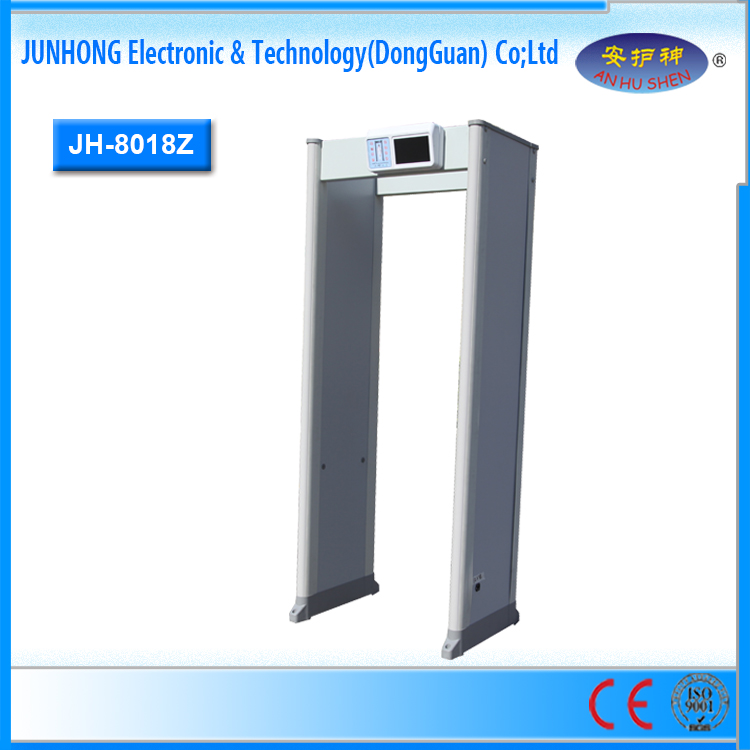

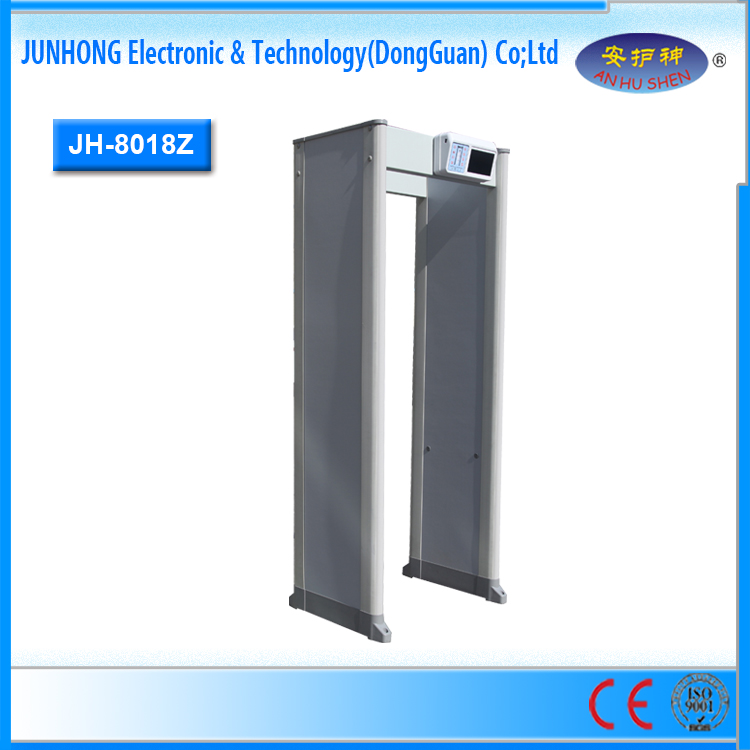

Unique Design Walk Through Door for Checkpoint

     This kind of unique design archway metal detector is the new product with high sensitivity. Mainly use at airport, prison, and museum. This unique design walk through door can adjustthe working frequency automatically or manually by itself.Besides,  will inform the user when exit the system.The follows are the details of walk through door frame metal detector about the door.

Advanced features:

★Multi-zone technology: 18/24/33/45/48 detection zones, adjust sensitivity ofeach zone individually.

★Touch screen: 7-inch HDMI LCD touch screen, easy to operate and understand.

★Mobile connection technology: realize mobile APP remote control(optional).

★IP Grade: IP55 superior waterproof performance.

★Self calibration once power on.

★self diagnostic, the metal detector door will inform the user when exit the system.

★Start-stop technology: infrared devices with automatic start-stop technology.

★Adjust the alarm sounds arbitrarily.

★Adjust the working frequency automatically or manually.

★Detection Technology: Even detection technology, optional blind spot.

★Professional detection process: built in 72 different detectionoccasions(providing upgrade services).

★Working frequency: 100 working frequency.

★Security level: 100 security levels.

★Detection sensitivity of each zone: From 0 to 355 level.

★Multi-alarm sounds to choose-to fit different applications.

★Counter: Record the pass and alarm numbers.

★Query function: The security metal detector has real-time information query function.

★Intelligent Standby: The system has intelligent standby operation alerts.

★Working Standby: 16 high-brightness LED indicator on.

★Detection speed: more than 60 people pass and detect in 1 minute.


Technical Parameters

 Electrical reference

EN60950 safety standards

YES

Radiation standards reference

   EN50081-1

YES

 Anti-interference standard reference

   EN50082-1

YES

Strictly enforced Walk Through Metal Detector National standard(GB15210-2003)

YES

ISO9001:2008 certificate

YES

OHSAS18001 health certificate

YES

ISO14001 environment certificate

YES

EU CE FCC ROHS certificates

YES





Technical Standard

Model

JH-8018Z

JH-8024Z

JH-8033Z

Detection zones

6/12/18 zones

8/16/24 zones

11/22/33 zones

Exclude appointed metal on one body like the belt,bra,etc.

YES

7-inch LCD capacitive touch screen

YES

Touch-screen operation

YES

Mobile APP remote control

Optional

Multiple networking interfaces

YES

External control alarm device port

YES

Secondary development port/upgrade port

YES

Count the number of pass

YES

Count the number of alarm

YES

Query in/out record

Optional

Dual password protection

YES

Multi zone detection,multi alarm

YES

Smart Partition

YES

Smart Partition alarm indicator

YES

Double sides super brightness SMD LED

YES

100 working frequency

YES

Alarm quiet mode

YES

Adjust the alarm sound

YES

Multiple alarm sounds

Optional

Front or rear single side alarm light

Optional

Front sides alarm indicate lights

YES

Four sides led lights/optional

YES

Sensitivity of each zone can be adjusted

YES

Adjust sensitivity:0~355

YES

Security level:1~100

YES

48 detection zones

YES

Built-in 72 applications

YES

Back-up battery continues work for 2h/optional

Optional

Back-up battery continues work for 8h/optional

Optional

Restore factory settings

YES

Unique Design Walk Through Door
