Short Description:

Basic Info Model No.: EJH-2 Certification: CE, ISO Automatic Grade: Automatic Application: Spinning, Toy, Other Form: Conveyor Power: 140w Additional Info Packaging: paper carton Productivity: 50pcs/month Brand: Anhushen Transportation: Ocean,Land,Air Place of Origin: China Supply Ability: 50pcs/month Certificate: ISO,CE Port: Shenzh...


Product Detail

Product Tags


Basic Info

Model No.: EJH-2

Certification: CE, ISO

Automatic Grade: Automatic

Application: Spinning, Toy, Other

Form: Conveyor

Power: 140w


Additional Info

Packaging: paper carton

Productivity: 50pcs/month

Brand: Anhushen

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 50pcs/month

Certificate: ISO,CE

Port: Shenzhen


Product Description

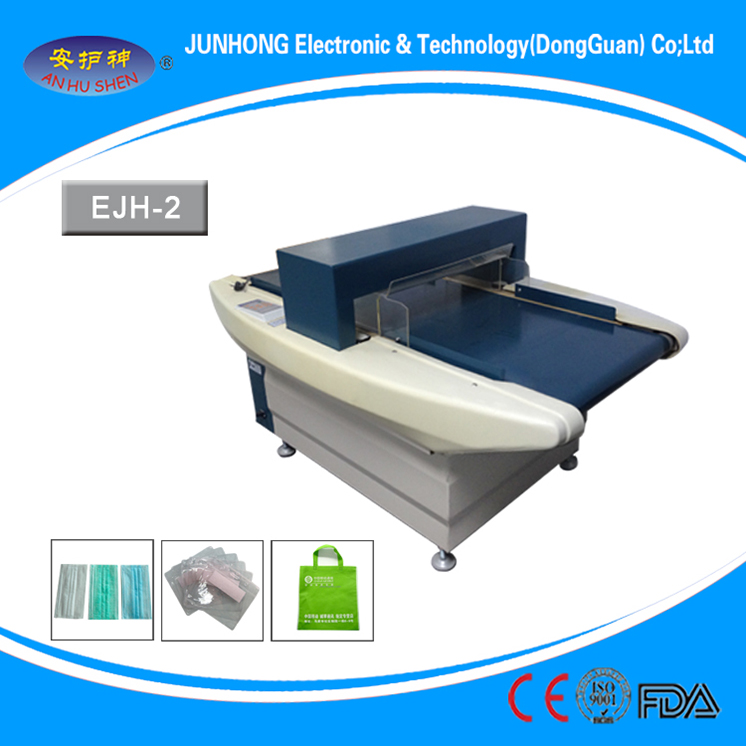

Return Back Conveyor Belt Metal Detector

   EJH-2 industrial needle detector, the garment needle detector can be adjusted, very easy to operate. When a metal is found , the toys metal needle detector gives out sound and light alarm, at the same time, automatically removes alarm objects or stop, its operation is extremely easy, flexible, reliable. The metal detection system for textile can connect with product line for use to carry out automatic inspection of production. There are more details of footwear needle detector as below.


Scopeof Application
The garment metal detector is mainly used for detecting ferrous metal that load or drop in raw materials andproducts in the field of toy, costume, shoemaking, chemical industry, leather,knitting, etc.

Functions of toy needle detector
A.  high sensitivity and stronginterference immunity.
B.  light structure and moveconveniently.
C.  various of specifications ofinspection window which can be chosen at will according to customers’ needs.
D.  quick conveying speed, applicable topipeline operation.
E.  matches the pipeline operation orautomatic control device.

Correlation parameter
Normal height of inspection window(mm):100-125-150-200
Normal width of inspection window(mm) :600
Sensitivity-Diameter of Fe ball(mm) :Φ0.8-1.5(10levels adjustable)
Alarm: Audible and visual automatic stop
Size: 1950(L)×1100(W)×1200(H)mm
Weight: 150kg

Electrical source: 220V 50Hz

Power: 140W

Metal Detection System for Texitle
