Basic Info

Model No.: JH-5B

Type: Metal Detector

Usage: Anti-theft, Metal, Gas

Installation Mode: Built in

Certification: CE, ISO

Application: Home, Industry, Communication Electronic Products

Power: 35W

Additional Info

Packaging: paper carton

Productivity: 1000 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000 pcs/month

Certificate: ISO ,CE

Port: Shenzhen

Product Description

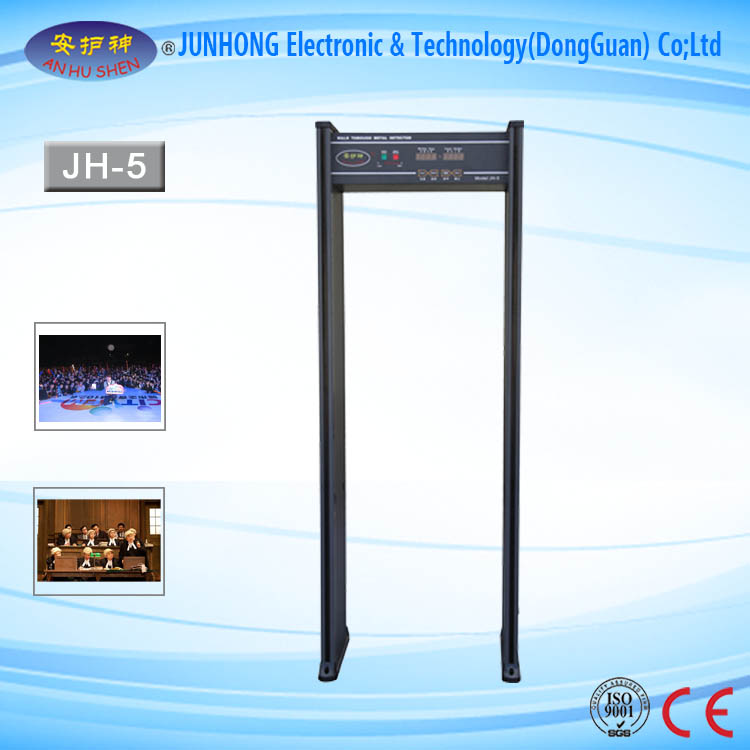

Over Head Control Walkthrough Metal Detector

     What makes the JH-5B archway metal detector one of the best high performance walk throughmetal detector are many excellent features like the waterproof, LCD screen, high sensitive, which gives operators extremely detailed and revealing imagesto better detect any security threats and alerts. There are more details of door frame archway metal detector.

Reasons to choose JH walk through metal detector:
1. Deters crime
2. Improves traffic flow
3. Reduces the number of required searches
4. Reduces workload of security personnel
5. Reduces false alarms
6. Increases Building safety with minimal cost
7. Durable material adoption

This metal detector door can be used in thefactory, prison, court, exhibition hall, stadium and entertainment lieu, wherethe prohibited articles need to be checked for safety.

Function and Character of 18 zones archway metal detector

(1)  All weatherwater proof, IP55 Standard. Durable with Alloy & PVC Construction.

(2)  LCD ScreenDisplay: LCD Screen Display with two version of Chinese and English menu. Easyto view and operation.

(3)  Alarm: Audibletone and volume adjustable with low , middle and high . Bright LED Visual alarm

(4)  18 independentdetection zones.

18 independent distributing search coverage andacousto-optic alarm when target is found. LED gatepost lights directly displaysthe alarming area which can exactly indicate the target from left, middle andright area.

(5)  255sensitivity level Adjustable Flexibility: We can reach the securityrequirements by adjusting the flexibility. There are 255 flexibility degrees ineach detective area.

(6)  Complexcircuit, infrared installation and computer automatic identification decreasethe mistakes and missing dramatically. It can automatically show the alarmfrequency and numbers of passed people.

(7)  Passwordprotection setting: You can change the system, flexibility and other settingonly after typing in the pass word correctly and only authorized person allowedto change the setting can’t change the settings.

(8)  Adoption ofweak magnetic field launching technology will not cause harm to heart pacemakerwearer, pregnant women, disks and videos.

(9)  Two or moregates can work simultaneously

(10) Network connection, RS485 port can connect Max32units gates. It’s easy to control and adjust the progress.

Dimensions

Outer frame: 2.2 *0.82 *0.5m (H * W * Depth)

Inner frame: 2.0*0.7*0.5m (H * W *Depth)

Electric current: 90-240vAC, 50/60 Hz Power:35W

Net Weight: about 65kg Gross Weight: 70Kg

working environment: -30~55.c

 humidity <=95%RH   Standard: GB15210-2003

---
