Short Description:

Basic Info Model No.: EJH-330 Certification: CE, ISO Condition: New Customized: Customized Alarm Form: Sound and Light Alarm Power: 120w Additional Info Packaging: paper carton Productivity: 50pcs/month Brand: Anhushen Transportation: Ocean,Land,Air Place of Origin: China Supply Ability: 50pcs/month Certificate: ISO,CE Port: Shenzhen...


Product Detail

Product Tags


Basic Info

Model No.: EJH-330

Certification: CE, ISO

Condition: New

Customized: Customized

Alarm Form: Sound and Light Alarm

Power: 120w


Additional Info

Packaging: paper carton

Productivity: 50pcs/month

Brand: Anhushen

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 50pcs/month

Certificate: ISO,CE

Port: Shenzhen


Product Description

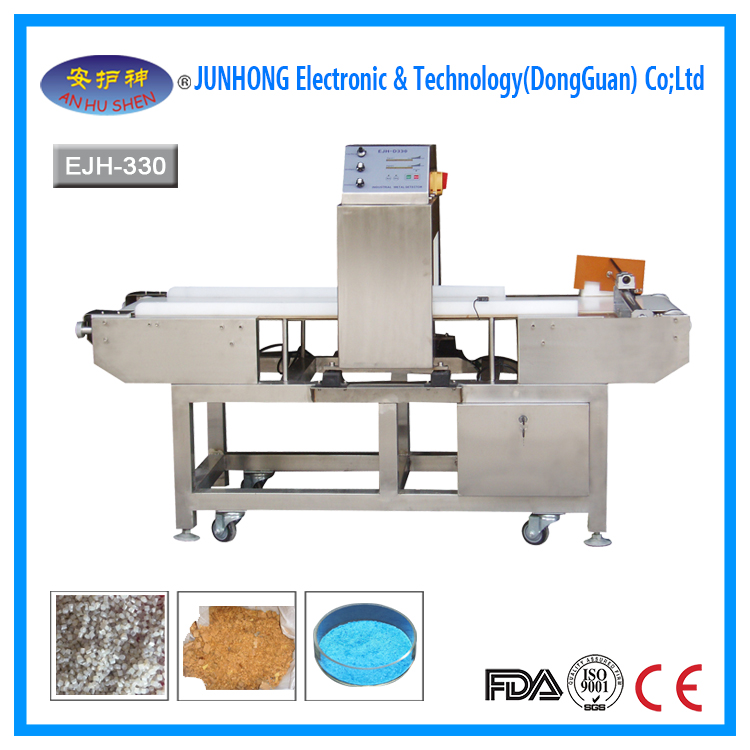

Healthy Auto-Conveyor Metal Detector with Tunnel


   EJH-330 is a conveyor metal detector that the conveyor belt iscomplied with American food sanitation standard (FDA). We can directly conveyand detect unpackaged product like food, fisery and so on. The auto-conveyormetal detector with tunnel owns the ability of dual-channel detecting anddetect ferrous or non-ferrous respectively. There are all description of food  metal detector asbelow.


Scope of application

The seafood metal detector is mainly used fordetecting the metal chips inside the sea-food, fishery, noodle, frozen food fruitor dry fruits, sugar, tea, pharmaceutical products and industrial material andproducts etc.


Product characteristic of snack food metal detector

1. all made of Stainlesssteel , anti-erosion and long life span.

2. Dual channel detecting,one Channel for Fe detecting, the other for non-ferrous metal

3. Strong transport drive,all the products below 25kg can be conveyed to be checked. conveying speedadjustable. Speed regulator can be added

4. Water-Proof, IP65compliant

5.Good Anti-interference function: reduce product effect signal form the frozenfood and pickled food.

6. The performance of thebelt conveyor is complied with the American food sanitation standard (FDA), itcan be used for transporting the unpacked food directly.

7. Can be connected toproduction line.


Technical parameters:

1. Inspection window size:

Normal height of inspection window (mm): 200

Normal width of inspection window (mm): 500

The measures of the inspection window can bedesigned according customers requirement.

2. Sensitivity: the actual sensitivity varyaccording to different products

Tunnel size

25cm×8cm

30cm×10cm

40cm×15cm

50cm×20cm

60cm×30cm

Fe:

≥0.5mm

≥0.7mm

≥0.8mm

≥1.0mm

≥1.2mm

SUS304:

≥1.0mm

≥1.2mm

≥1.5mm

≥2.0mm

≥2.5mm

3:  Electrical source: AC110V/220V/380V 50/60 Hz.

4:   Power: 120W

5:  Alarm: Audible and visual alarm, automaticstop

6:  Normal Size (mm): 1740(L) X 900(W) X1030(H)

7:  Gross Weight: approx 350Kgs Net Weight:Around 300kgs

 Auto-rejection equipment can beinstalled with the according customer`s requirement.

Note: The above sensitivity judged by the machine without carrying any products,the actual detection sensitivity may vary as the product to be test or orposition of metals is different.


Healthy Metal Detector
