Short Description:

Basic Info Model No.: JH-6S Certification: ISO, CE Customized: Non-Customized Form: Other Application: Station, Prison, Museum Working Environment: -40 ℃~85 ℃ Additional Info Packaging: paper carton Productivity: 200 pcs/month Brand: Anhushen Transportation: Ocean,Land Place of Origin: China Supply Ability: 200 pcs/month Certificate: I...


Product Detail

Product Tags


Basic Info

Model No.: JH-6S

Certification: ISO, CE

Customized: Non-Customized

Form: Other

Application: Station, Prison, Museum

Working Environment: -40 ℃~85 ℃


Additional Info

Packaging: paper carton

Productivity: 200 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 pcs/month

Certificate: ISO ,CE

Port: Shenzhen


Product Description

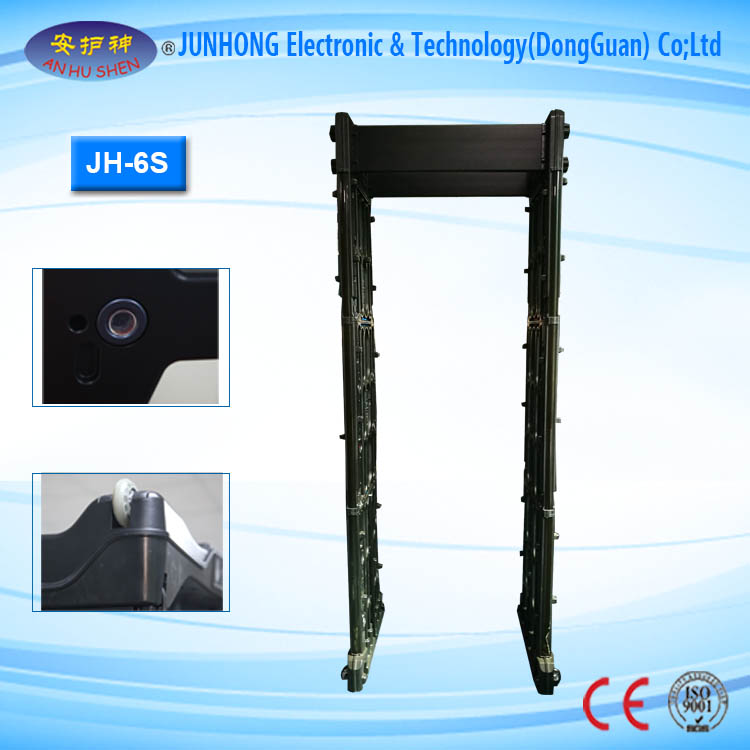

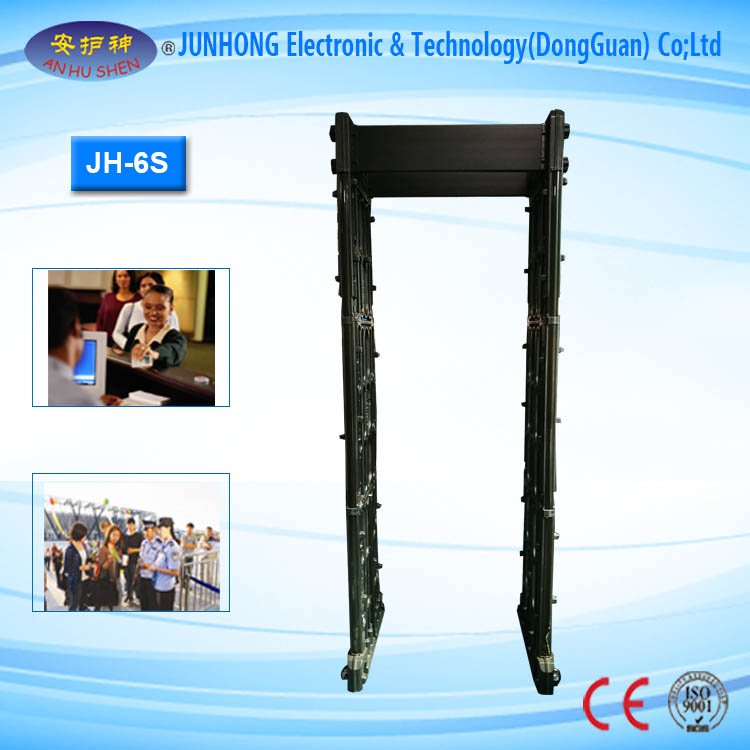

Multi-Channel High Sensitivity Adjusting Door

     The JH-6S High Standard Walk Through Door adopt advanced techniques, with a numberof patents and certificates on material, the appearance, technology andstructure . The portable walk through metal detector door is a lightweight , high-performance walk through scanner with high sensitivity ,portable, waterproof  etc features, Oneoperator can transport the high sensitivity checkpoint metal detector easily to any locations and finish installationwithin 5 mins , Ideal for security checks at stadiums, conferences, schools andother events. The unit of the checkpoint metal detector is easy to operate and settings are selfexplaining.

Advanced Technology

● Multi-zonetechnology: 8,16,24 detection zones, can change detection zones intelligently(upgrade technology of each zone can be provided).

● Touchscreen: 7-inch HDMI LCD touch screen, iPad interface style, easy to operate and

 understand.

● Mobileconnection technology: realize mobile APP remote control

● IP Grade:IP67 superior waterproof performance

● Selfcalibration once power on

● Selfdiagnostic, the walk through metal detector gate will inform the user when exit the system

● Start-stoptechnology: infrared devices with automatic

start-stoptechnology.

Features and Functions

● Adjustablesensitivity of each detection zone

●Multi-alarm sounds to choose

Operatingfrequency can be adjusted manually or automatically

● Move afterfolded or installation(two move methods to choose)

● Detectiontechnology: Even detection technology, no blind spot

● Internettechnology: Remote upgrade system and remote control system

● Workingband: 120 working bands

●Sensitivity of each detection zone:355 level

●Statistics: Record the pass and alarm numbers

● Queryfunction: The system has real-time information query function

●Intelligent Standby: The system has intelligent standby operation alerts

● Detectionspeed: more than 60 people pass and detect in 1 minute

Technical Parameters

●  Detection objects: knives, guns, coins                  ● External Dimension:2250x850x500mm

●  Passage Dimension: 2051x710x500mm               ●  FoldDimension:889x606x484mm

●  Packing Dimension: 948x666x525mm                 ● Humidity: 99%, non-condensing

●  Working environment: -40 ℃~85 ℃                  ● Weight: NW 42KG, GW 50KG

●  Input : AC 110V~240V/50Hz~60Hz                 ● Output : DC 12V/5A    12W

●  Power supply: the whole system is equippedwith polymer battery, life time 8,16,24,48,72

hoursoptional.

Multi-Channel Walk Through Detector
