Short Description:

Overview Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: ANHUSHEN Model Number: EJH-28 Type: industrial metal detector for food,rubber,plastic,textile etc,. LCD display: yes Recording function: able to store up to 20 kinds of different products Ferrous and non-ferrous: can be detected Stainless Steel: can be detected type: conveyor belt belt standard: FDA standard belt Warranty: 1 years Tunnel size: can be customized acc...


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ANHUSHEN
Model Number:
EJH-28
Type:
industrial metal detector for food,rubber,plastic,textile etc,.
LCD display:
yes
Recording function:
able to store up to 20 kinds of different products
Ferrous and non-ferrous:
can be detected
Stainless Steel:
can be detected
type:
conveyor belt
belt standard:
FDA standard belt
Warranty:
1 years
Tunnel size:
can be customized according to customer’s requirements
CE & ISO Certificate:
approved
SupplyAbility
SupplyAbility:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
polywood:180*110(W)*100cm G.W:370kgs
Port
Shenzhen,Humen
Lead Time :
5 to 30 working days according to the order quantity

//



welcome to>>Junhong Electronic & Technology (Dongguan) Co., Ltd.

Comprehensive presentation
Detail
Specifications









Technical parameters:





Technical parameters:
1. Inspection window size:
Normal size of inspection window(mm): 120(H)X400(W)
Normal length of conveyor: 1800mm, normal height of conveyor to ground: 650mm
Remark: The measures of the sizes can be designed according customer’s requirement.
2: Sensitivity:Diameter of 0.8 mm steel ball, weight of 1.2-1.5g Lead, copper and other globular metal parts.
3: Electrical source: 220V 50/60Hz
4: Power : 120W
5: Alarm: Audible and visual alarm, automatic stop
6: Normal Size(mm): 1740(L)X900(W)X1030(H)
7: Gross Weight: approx 370Kgs Net Weight: Around 310kgs.





Product characteristic:
1: Stainless steel shell , anti-erosion and long life span .
2: The conveyor belt is made of nonpoisonous material
3: Strong transport drive, all the products below 25kg can be conveyed to be checked.
4; Quick convey speed, it is specially suitable for pipeline operation.
5: When sensor detect a broken needle or over a diameter 0.8mm iron ball, buzzer will sound and conveyor belt will stop. After that, detected products will be return at hand.
6:The performance of the belt conveyer is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.
7: Can match the pipeline operation or automatic control device.
8. Good waterproof, dustproof performance.
Main Features:

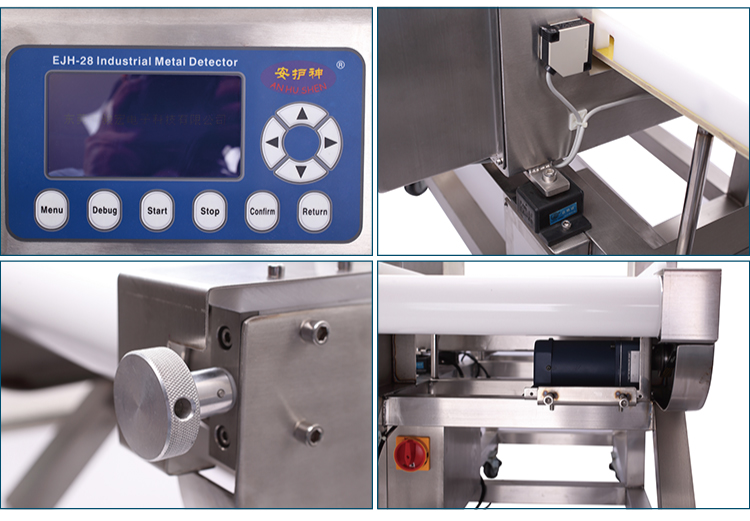

LCD display & DSP digital signal processing technology
Recording and memory function: able to store up to 20 kinds of different products.
Dual-channel and dual-frequency detecting to detect Fe and non-ferrous metals like stainless steel respectively.
Recording and memory function: able to store up to 20 kinds of different products.
360 degree phase adjustment technology adopted to decrease product effect and improve sensitivity in non-ferrous metal detecting.
With high stability: no alarm even if being hammered. Can be integrated into production line or automatic equipment.
Way of alarming: sound and light alarm, stop running automatically.



Scope of application:
EJH-28 is mainly used for detecting the metal chips inside the sea-food , fishery, noodle, frozen food, sugar, tea, pharmaceutical products, textile, Garment, etc.
