Short Description:

Overview Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: AN HU SHEN Model Number: JH5030A Product name: X ray baggage scanners Channel size: 500mm(W)*300mm(H) Conveyor Speed: 0.22 m/s Conveyor Max Load: ...


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AN HU SHEN
Model Number:
JH5030A
Product name:
X ray baggage scanners
Channel size:
500mm(W)*300mm(H)
Conveyor Speed:
0.22 m/s
Conveyor Max Load:
50 kg
Certificates:
CE. ISO
Warranty:
1 Year(labor and parts)
Power supply:
220 VAC (±10%) 50±3HZ
Usage:
airport station .etc
Application:
Security Inspection Equipment
name:
airport x-ray scanners
SupplyAbility
20 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
Standard export carton packing.
Port
SHENZHEN
Lead Time :
within 3-7 working days after getting the payment

Product Description

airport x-ray luggage inspection machine albania

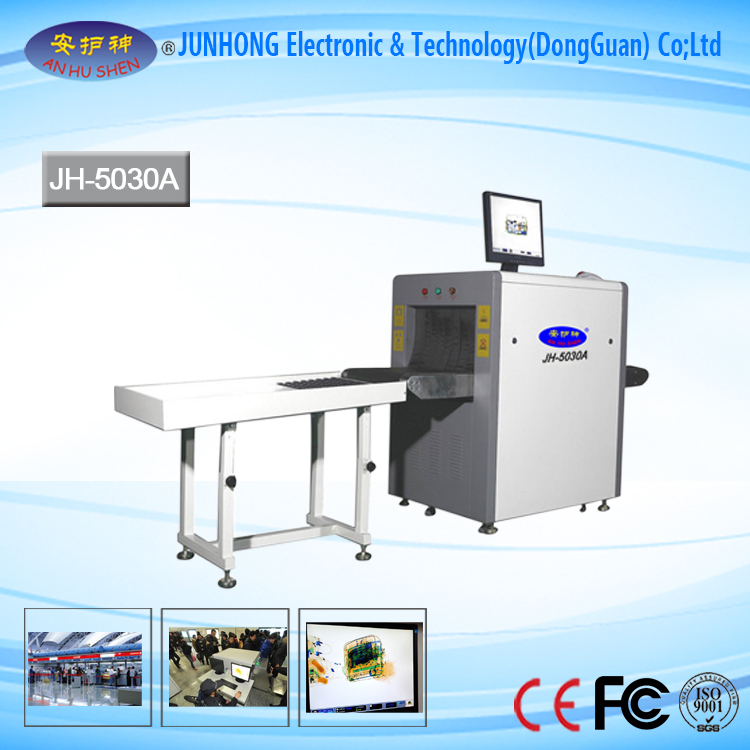

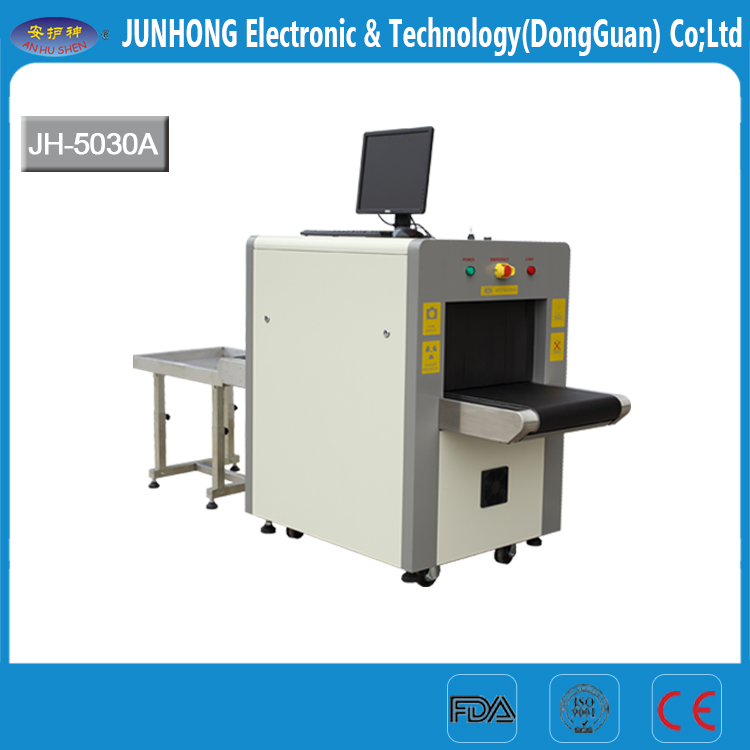

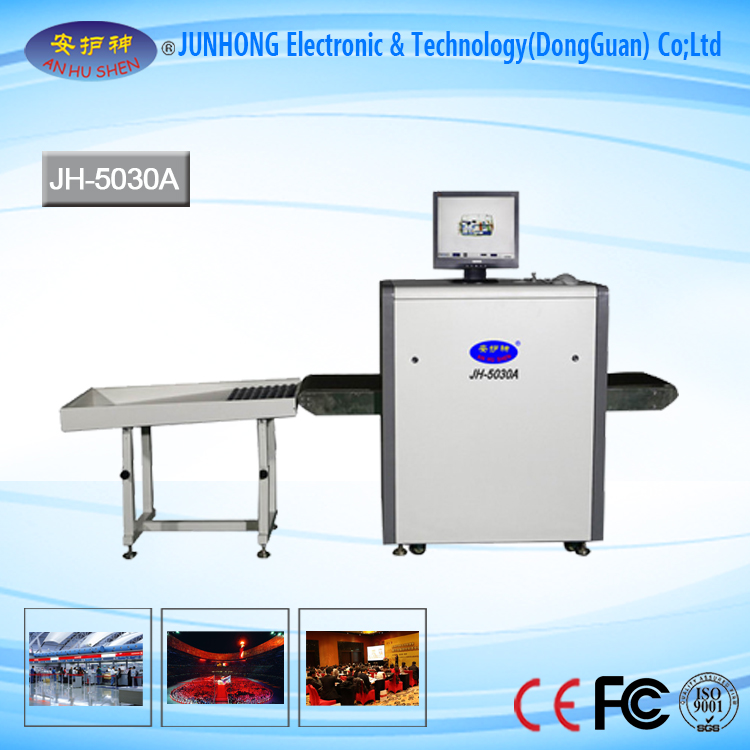

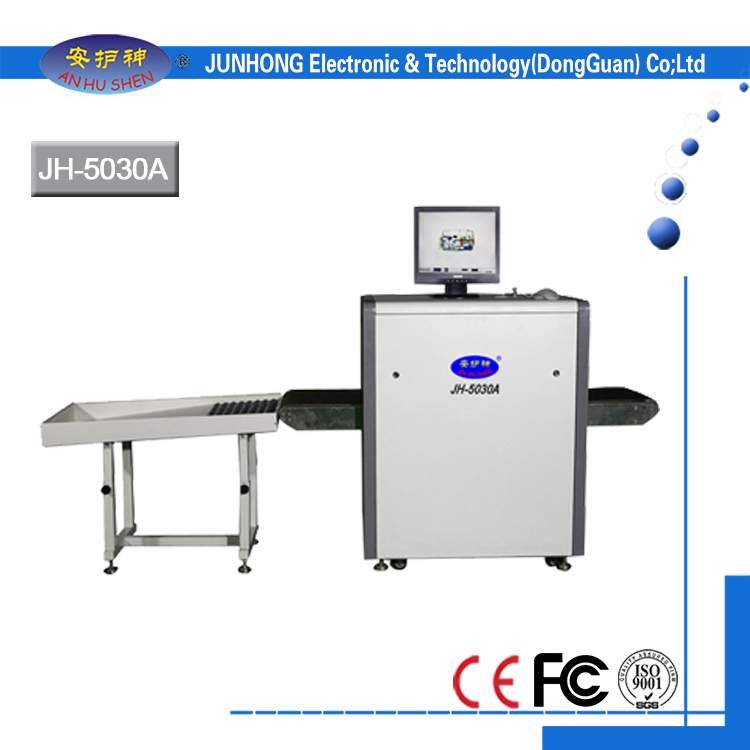

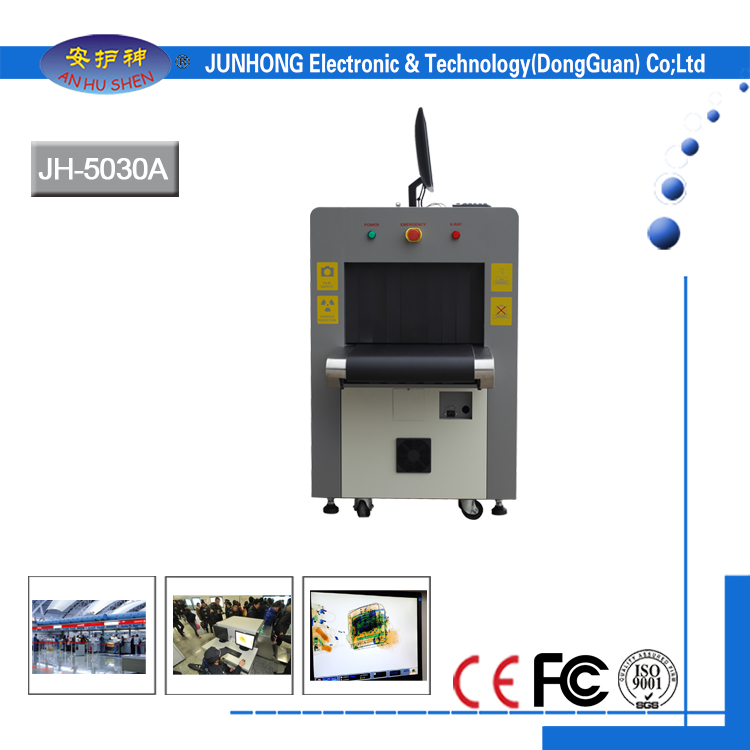

JH-5030A X-RAY baggage scanner (4).jpg
JH-5030A X-RAY baggage scanner (3).jpg

Applications:
01. Airports,
02. Transport terminals,
03. Buildings,
04. Factories (to find needle in clothing,  shoes,  bags),
05. Courthouses,
06. Embassies,
07. Military installations,
08.
Prisons,
09. Hotels,
10. Schools ,
11.
Convention centers,
12. Security checkpoints
13.
Special events location

Features:

Technical Data:
Tunnel Size: 500(W)×300(H)mm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 20 kg
Single inspection dosage: < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 8MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation: <0.3µGY/H



X-ray Generator:
Orientation: Vertically Upward
Tube Current: 0.4~0.5MA(adjustable)
Anode Voltage: 80 KV(adjustable)
Angle: 60°
Generator cooling/working periods Sealed oil bath with forced air/100%

Scope of application

JH-5030A is mainly used for .airport station for baggage luggage scanner.



Technical parameters

IMAGE PERFORMANCE SYSTEM:
 X-ray sensor: l type photo-diode array detector, 12bit
 Monitor:high resolution 17inch color lcd display
 Color quality: 24 bit real colors
 Edge enhancement: object contour edge is more distinct
 Super image enhancement: image detail is more distinct

.High penetrate strength display: increase brightness of dark area in image to display object which is      behind high absorbtivity mass distinctly
.Low penetrate strength display: increase contrast of low absorbtivity mass (easy to penetrate) to      display it distinctly

 Magnifier: function of partial enlargement
 Brightening/dimming: increase brightness of image/decrease brightness of image.
 mage recurrence: display previous twenty images and process any one of them
 Image restoration: restore image to initial status at the time of stopping conveyor
 Image storing: real time store any image and process it in operation status



Multi-energy function:
1 Multi-energy color: display organic material for orange, display inorganic material for blue, and display mixture for green
2 High energy/low energy: switch to display two energy type, high energy stands for metal etc., low energy stands for nonmetallic
3 Auxiliary function for drugs & explosives: help to detect such dangerous material as drugs & explosives etc.
4 Audible & visible alarm: give sound and visible signal when conforming to condition



OPERATING ENVIRONMENT:
Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise: <65D



Quality assurance:

One year limited warranty(Labor and parts)

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
