Short Description:

Basic Info Model No.: EJH-14 Certification: CE, ISO Condition: New Customized: Customized Alarm Form: Sound and Light Alarm The Main Material: SUS 304 Additional Info Packaging: paper carton Productivity: 50 pcs/month Brand: Anhushen Transportation: Ocean,Land Place of Origin: China Supply Ability: 50 pcs/month Certificate: ISO ,CE Por...


Product Detail

Product Tags


Basic Info

Model No.: EJH-14

Certification: CE, ISO

Condition: New

Customized: Customized

Alarm Form: Sound and Light Alarm

The Main Material: SUS 304


Additional Info

Packaging: paper carton

Productivity: 50 pcs/month

Brand: Anhushen

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 50 pcs/month

Certificate: ISO ,CE

Port: Shenzhen


Product Description

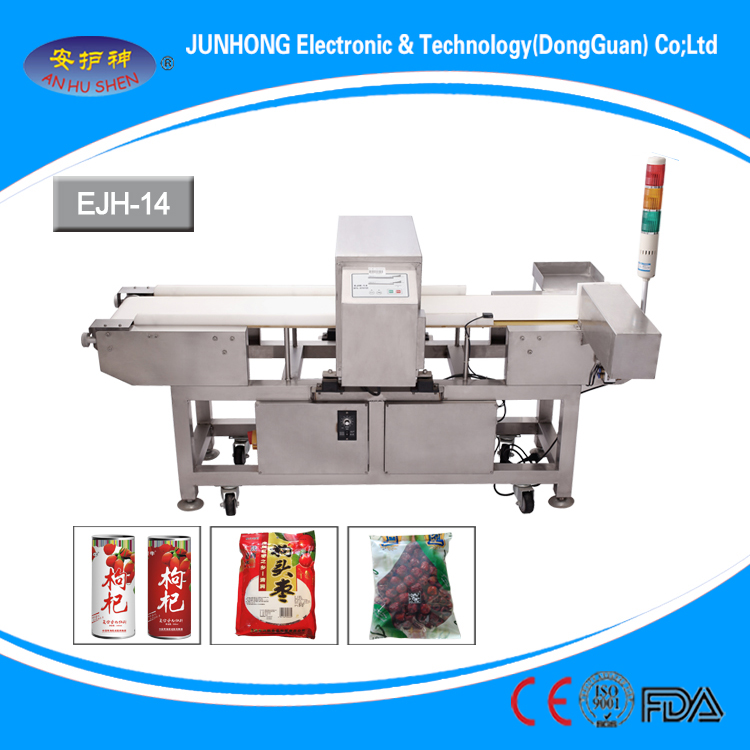

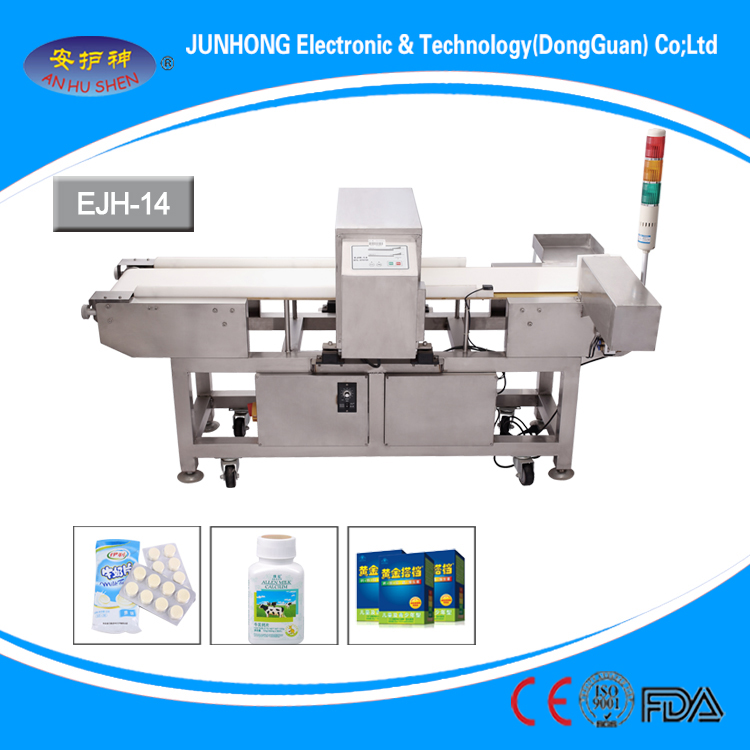

Intelligent Bakery Metal Detectors

      The industrial metal detector is new arrival food metal detector.The belt conveyor of the tunnel metal machine iscomplied with the FDA standard, so the bakery products metal detector can transport the food such as the bread,biscuits and so on. And the conveying speed could be adjustable.Here are the characteristics of this metal detector machine.



Scope of application

EJH-14 is mainly used for detecting the metalchips inside the sea-food , fishery, noodle, frozen food, , sugar, tea,pharmaceutical products etc.

 Product characteristic

1. Stainless steel shell , anti-erosion andlong life span .

2. The conveyor belt is made of nonpoisonousmaterial

3. Strong transport drive, all the productsbelow 25kg can be conveyed to be checked.

4. Quick convey speed, it is speciallysuitable for pipeline operation.

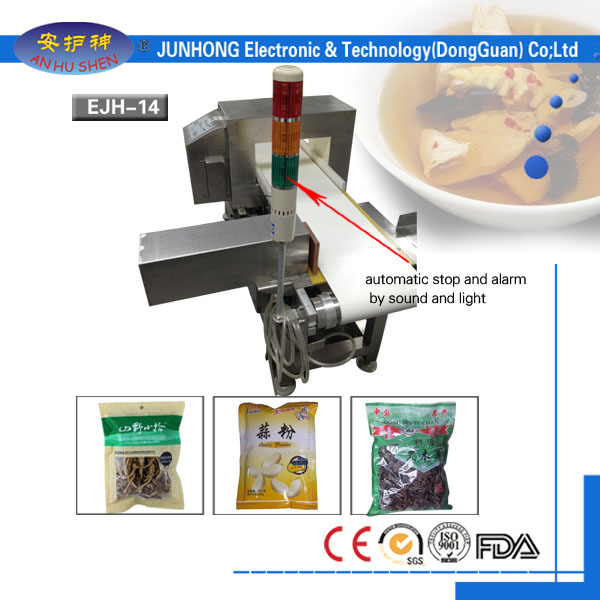

5. When sensor detect metal part, buzzer willsound and conveyor belt will stop.

6. The performance of the belt conveyer iscomplied with the American foodsanitation standard (FDA), it can be used for transporting the unpackedfood directly.

7. Can match the pipeline operation orautomatic control device.

8 .conveyor belt speed 15 meter/minute to 35meter /minute.



Technical parameters

1. Inspection window size:

Normal height of inspection window(mm): 15

Normal width of inspection window(mm): 400

The measures of the inspection window whichcan be designed according customers requirement.

2. Sensitivity:  ferrous 1.5mm .non-ferrous 4.0mm,stainlesssteel 3.5mm

Parameter

Electrical source:  220V 50Hz
Power :  120W

Tableof Sensitivity



25*8cm

30*10cm

40*15cm

50*20cm

50*40cm

60*30cm

FE

≥0.5mm

≥0.8mm

≥0.8mm

≥1.0mm

≥2.0mm

≥1.5mm

SUS

≥1.2mm

≥1.5mm

≥2.0mm

≥2.0mm

≥4.0mm

≥3.0mm

Remark: the above data is empty machinesensitivity. The real sensitivity will be lower on condition of differentproducts being tested.

Metal Detector For Bread Industry
