Short Description:

Overview Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: Anhushen Model Number: EJH-XR-4023 Power: Electronic Usage: Universal Testing Machine material: Stainlesss steel housing customized service: ...


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anhushen
Model Number:
EJH-XR-4023
Power:
Electronic
Usage:
Universal Testing Machine
material:
Stainlesss steel housing
customized service:
accept
SupplyAbility
SupplyAbility:
10 Piece/Pieces per Week

Packaging & Delivery
Packaging Details
Strong wooden case
Port
shenzhen
Lead Time :
25days after confirm prepayment

{“detailModule.supplyAbility.tip”:”If you finish the payment today, your order will ship out within the delivery date.”,”detailModule.supplyAbility.title”:”SupplyAbility”}

.richtext [data-maya] { width: 750px; font-size:14px; }

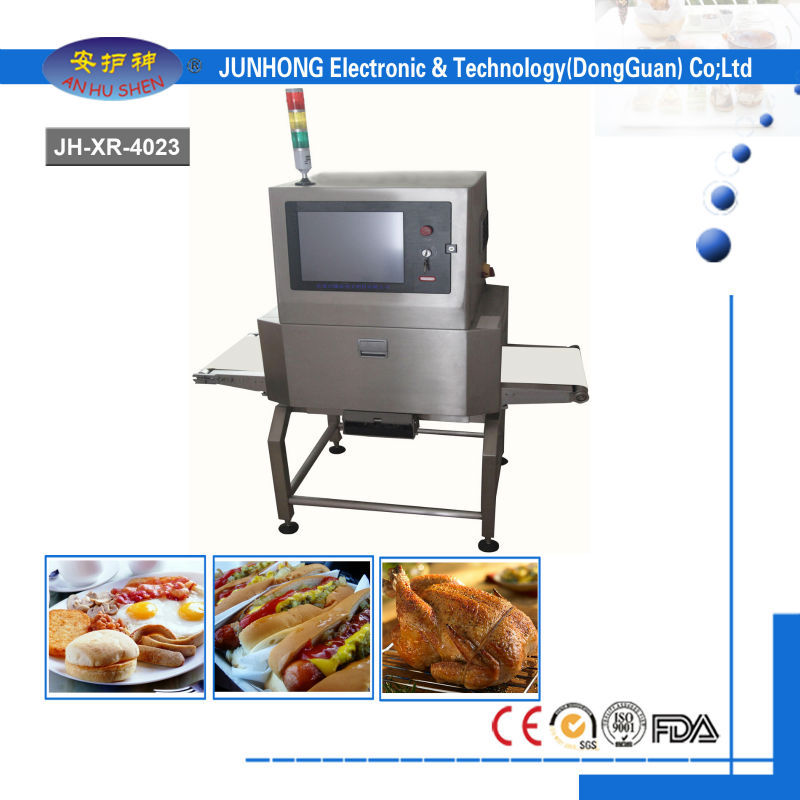

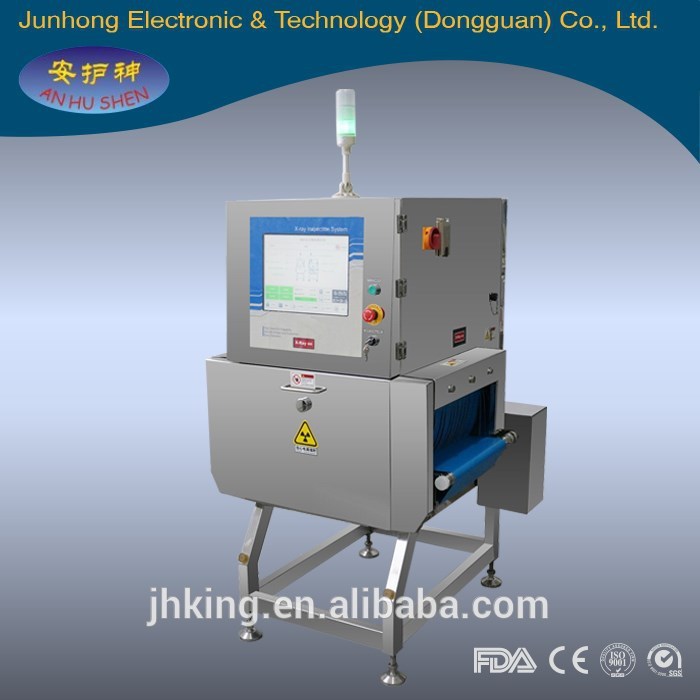

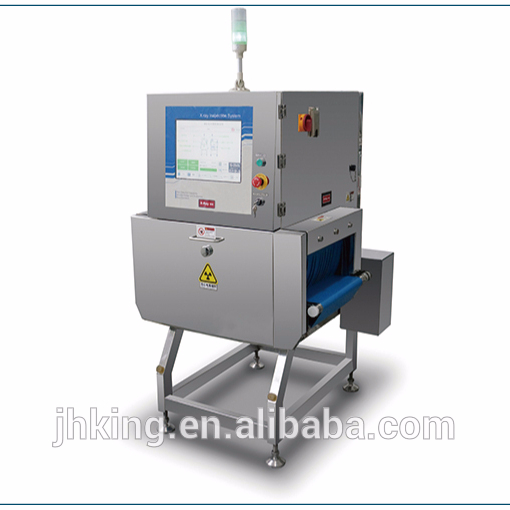

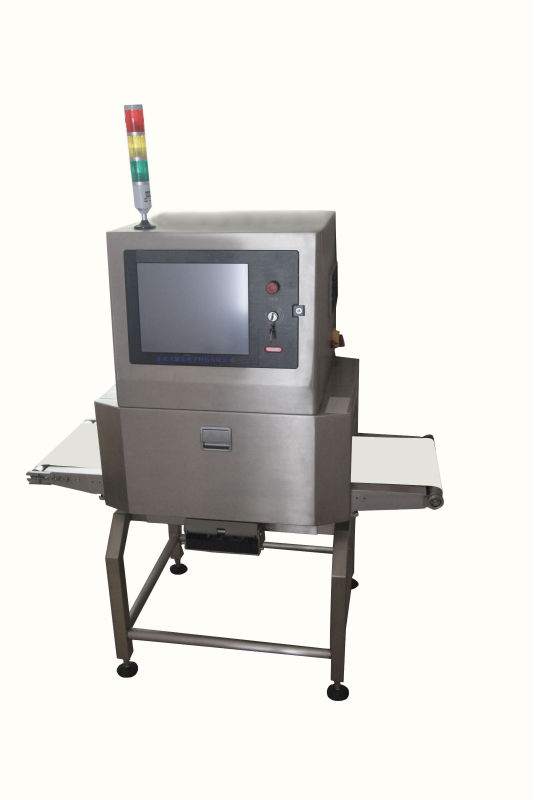

CE and FDA Standard X-ray Food Inspection Machine

Feature:

1) High sensitivity, it not only can detect metal, but also can detect glass, stone, plastic and other foreign objects.

2) Low price

3) Working stable4) Can detect high salt products and sausage with metal button. 5) No product effect and it can detect high salt products and sausage with metal button.

6) Can penetrate aluminum bag package and detect whether has foreign objects or not. (such as less than Φ0.6mm

iron and stainless)

7) Product customized

8) CE and ISO 9001 certification



Application:

X-ray Inspection system adopted to detect the contaminants in the food, including the metal , glass, ceramic, stone, bone, hard rubber, had plastic and so on, at the same time, it also has the function to detect the product defect, such as the packaging crack, bubble, content defects etc. to achieve the complete finished product detection.







LCD touch screen


It can add function or change design of software data with customers’ product need

Detected objects through the inspection door


1 Model name  EJH-XR-4023
2 Sensitivity  SUS wire0.3*2mm,SUS ball 0.4mm,ceramics 1.0mm,glass stone 2.0mm,stone 2.0mm(above sensitivity are machine in blank running )   Accurate sensitivity have relationship with product shape,size, and density
    Safety   80KV, 2.5mA (200W input ball tube )   Conform to national standard
    Screen manner   17inches LED display (Touch pad control )   Touch pad panel (keyboard /mouse)
    Interface language   XP system ,Chinese,english and other country language support ,   Can expand
    Can expand   400(width )×230(height )mm
    Width of belt   400 mm
    Belt speed   20 m/min
    Belt max load   5 kg(min )/ 10 kg(max)
    Work power   220VAC(±10%) 50±3Hz,1.2 KW
    Machine full weight   600~800 kg
    Work environment   0°C~40°C;20~80%
    Housing   Stainless steel (SUS304)
    Alarm   Auto stop by sound and light alarm , or can choose rejector system
    Product records up   Can storage 200 kinds of different product
   customized service   accept







Parameter Standard

Primary Specification

Tunnel Size…………………………. 400(width)×230(height)mm

Conveyor Speed …………………….. 20 m/min

Conveyor Maximum Load ………… 5 kg

Single Check Dose…………………… < 1

X-ray Leaking Dose……… ………… <0.5

X-ray Generator

Beam Direction Topdown

Anode Current………… ……… 2.5mA

Anode Voltage………… ………… 80 kV

Divergence Angle of Beam………… 60°

Cooling/Duty Cycle………………… Oil Cooling and wind Cooling

Image System

X-ray Sensor …………………… Photodiode Array Sensor

Monitor…………………………… 17 Inch LCD Touch Screen

Operational Parameter

Operation Temperature/Humidity……… 0°C~40°C

Storage Temperature/Humidity ………… -20°C~60°C

Operation Power………………………… 220VAC(±10%) 50±3Hz

Power Consumption………………………1.0 KVA(maximum)

Noise level……………………… …… <65dB



Universal parts :motor ,switch,button

Easy broken parts :Relay; :Fuse
