Short Description:

X-RAY baggage scanning machine, baggage screening machine, x-ray machine prices // Overview Quick Details Place of Origin:Guangdong, China (Mainland) Brand Name:AN HU SHEN Model Number:X-RAY JH5030A Tube Current:0.4~0.5MA(adjustable) Anode Voltage:80 KV(adjustable) Power wastage:1.0 KW (Max) Noise:<65D X-RAY SENSOR:L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT SupplyAbility:15 Piece/Pieces per Month Packaging Details: 215*125*172cm Port: SHENZHEN Lead Time :Shipped in 10 days after paymen...


Product Detail

Product Tags

X-RAY baggage scanning machine, baggage screening machine, x-ray machine prices

//

Overview
Quick Details
Place of Origin:Guangdong, China (Mainland)
Brand Name:AN HU SHEN
Model Number:X-RAY JH5030A
Tube Current:0.4~0.5MA(adjustable)
Anode Voltage:80 KV(adjustable)
Power wastage:1.0 KW (Max)
Noise:<65D
X-RAY SENSOR:L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT
SupplyAbility:15 Piece/Pieces per Month
Packaging Details: 215*125*172cm
Port: SHENZHEN
Lead Time :Shipped in 10 days after payment

X-RAY baggage scanning machine, baggage screening machine, x-ray machine prices

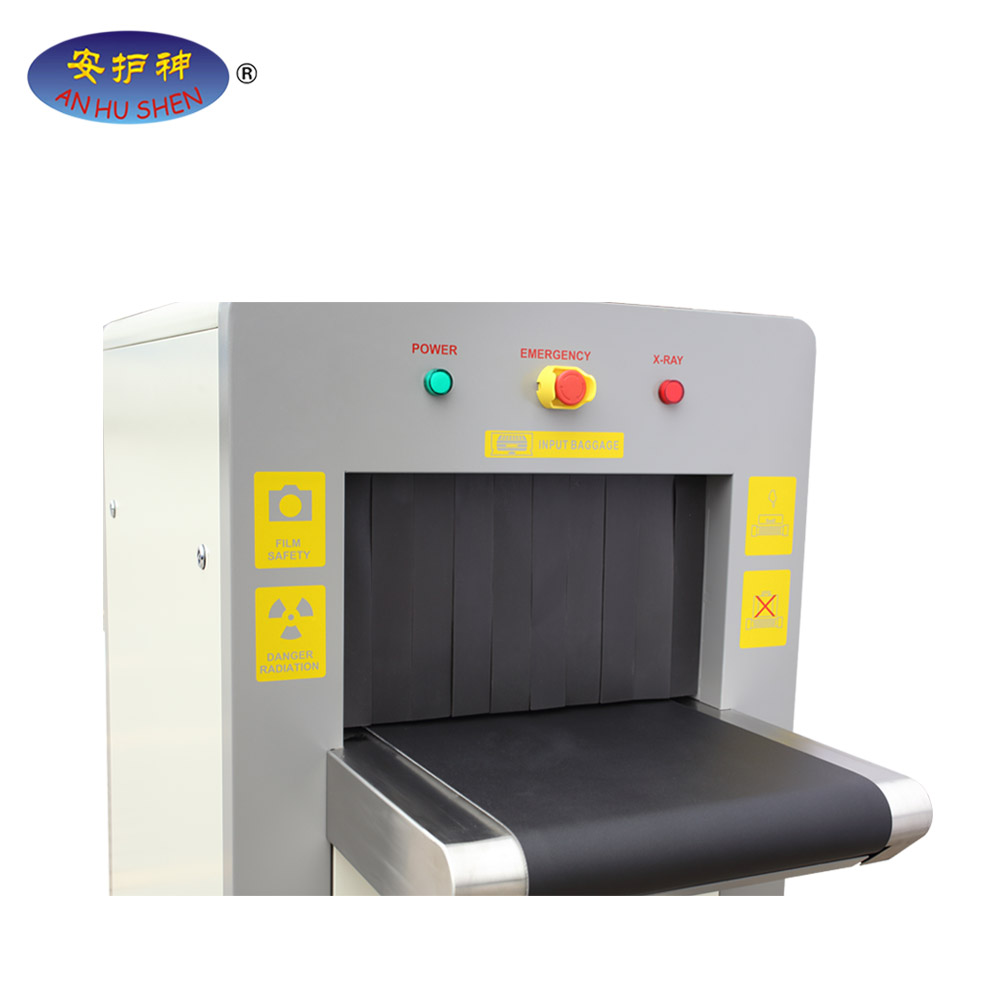

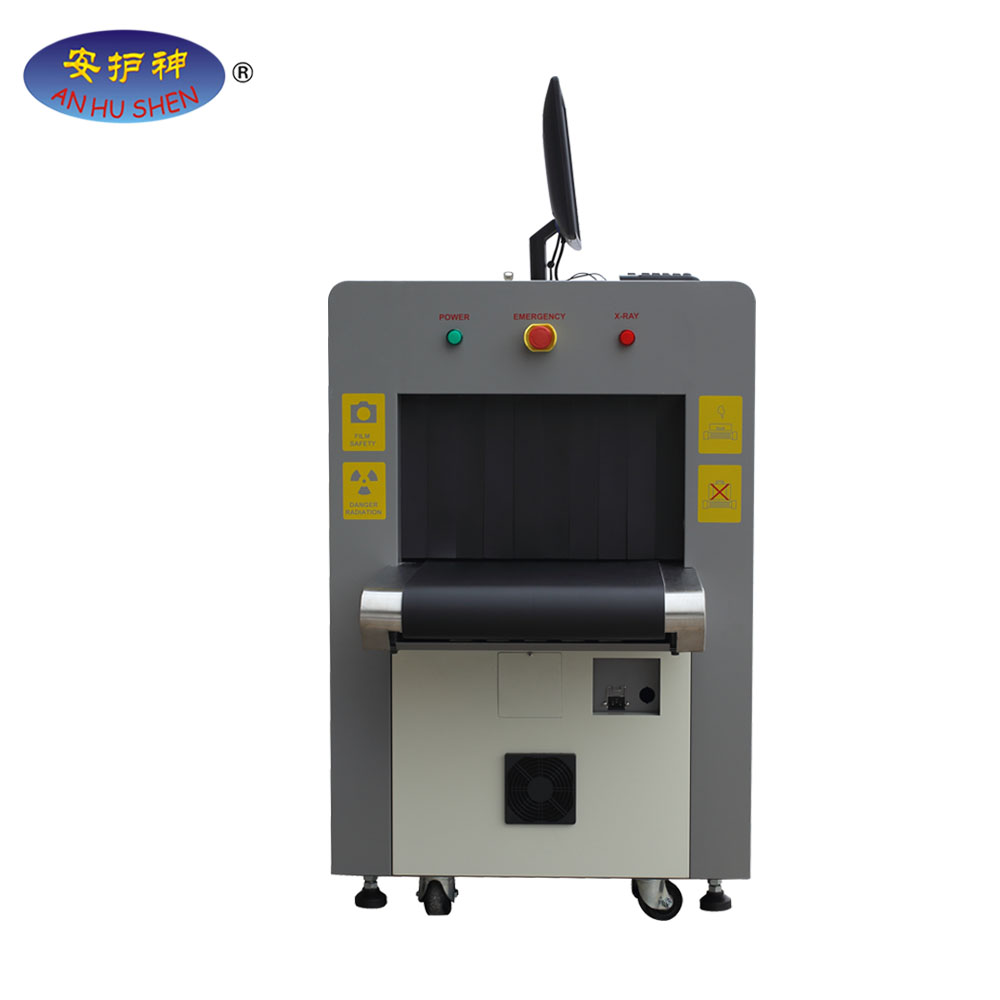

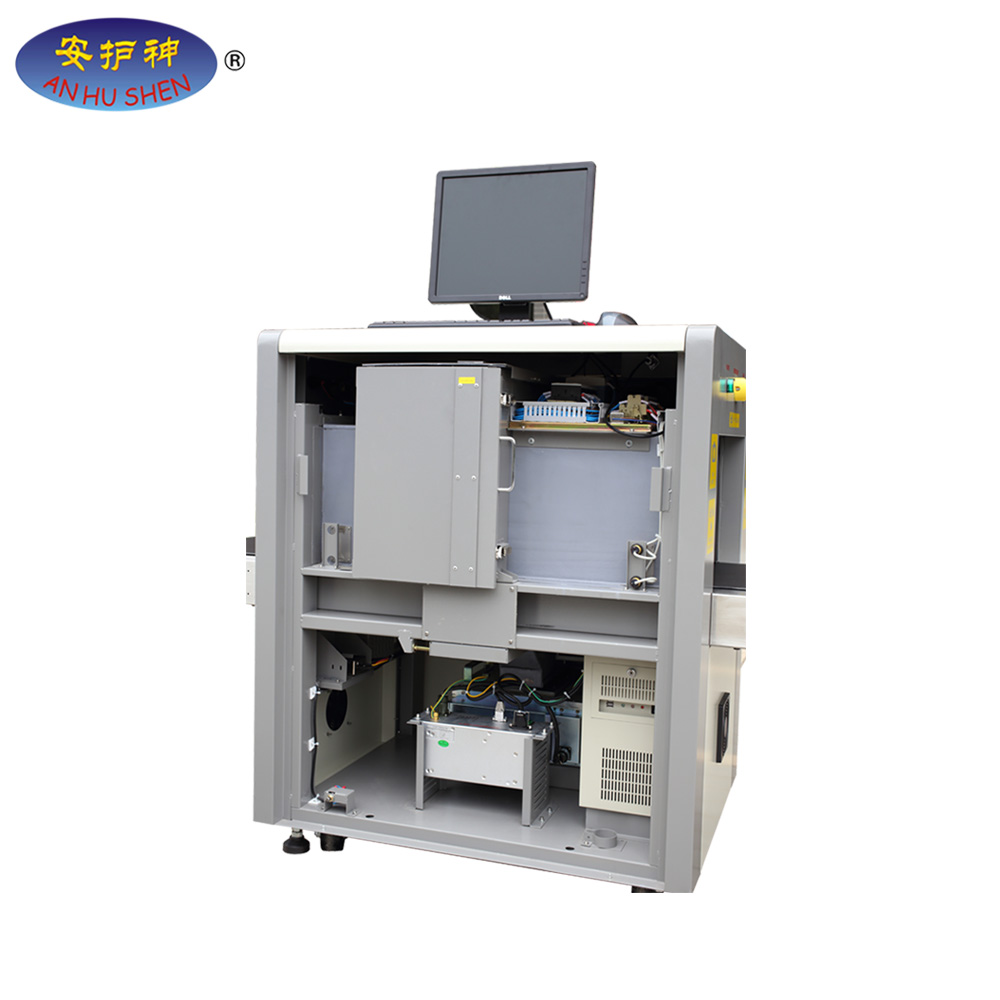

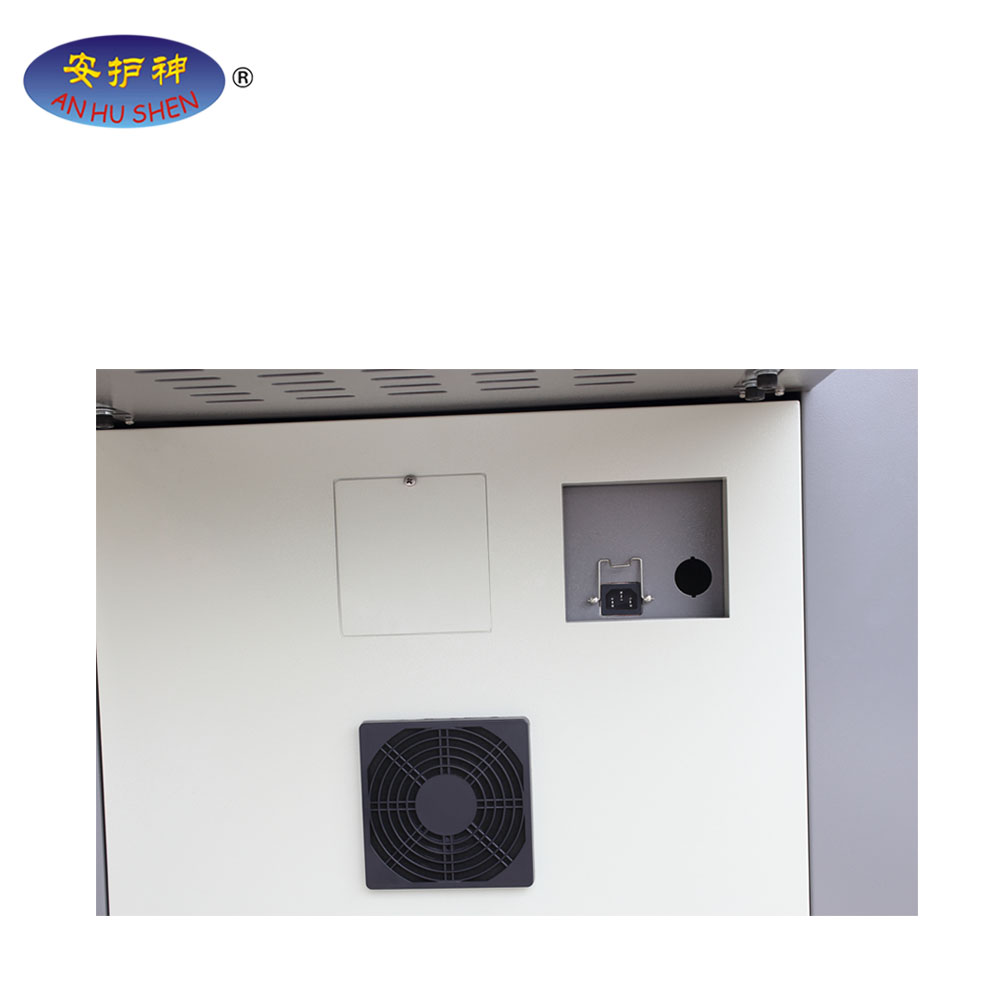

Detailed Images
Comprehensive presentation
Detail
Specifications
Product Description
Technical parameters:



FEATURE:
1. Alarm by sounds & light:Alarm by sounds and light when conform to condition.
2. Network interface: Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray: Transmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendly: The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.

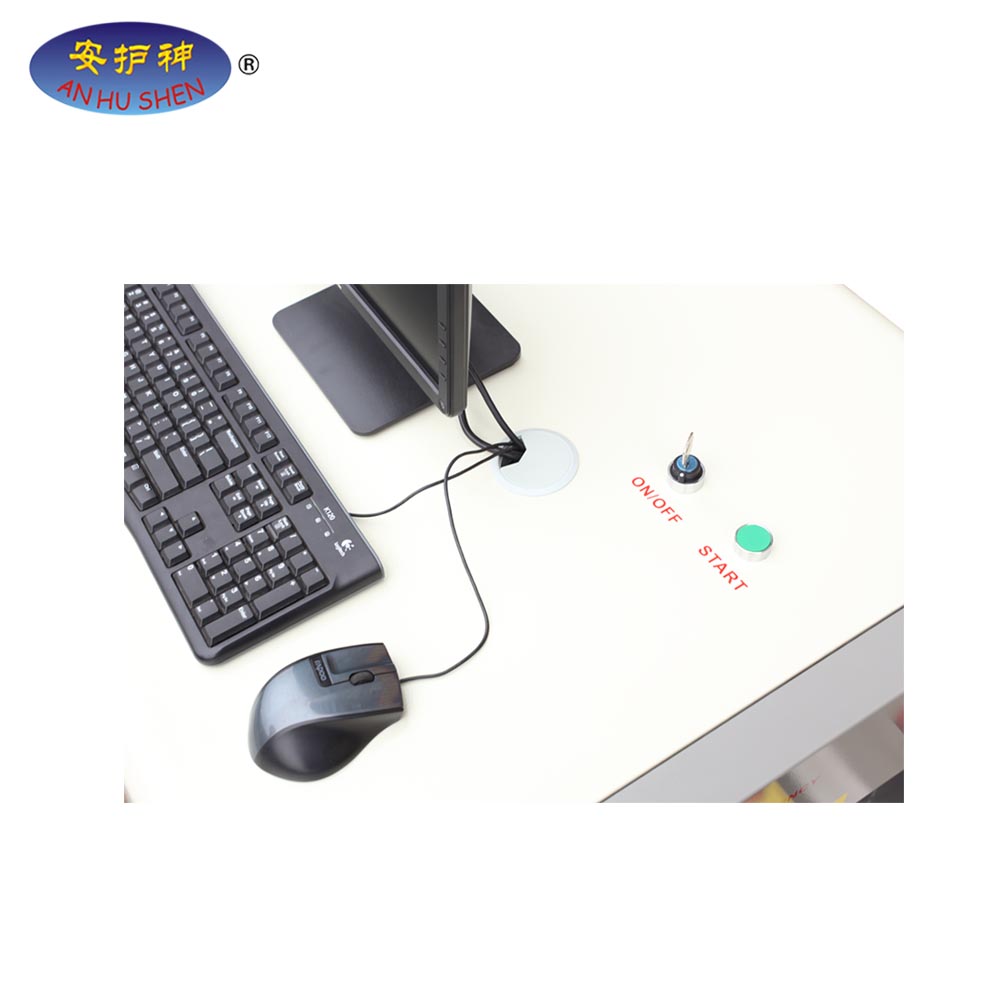

5. Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
6. Turn off by a key control: Turn off the machine only need one step: revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eye: Could be expediently observing enlargement area.
8. Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for the maintenance.



Tunnel Size: 500(W)×300(H)mm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 50 kg
Single inspection dosage: < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 8MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation: <0.3µGY/H

Packaging & Shipping



x-ray parcel scanner, X-RAY baggage scanner,x-ray security inspection machine
x-ray parcel scanner, X-RAY baggage scanner,x-ray security inspection machine



Our Advantages
x-ray parcel scanner, X-RAY baggage scanner,x-ray security inspection machine



x-ray parcel scanner, X-RAY baggage scanner,x-ray security inspection machine



Company Information

We are industrial metal detector manufacturer since 2005, specialized in R&D of detection technology,
producing and selling metal detectors. We have various of products range: needle detectors, industrial metal
detectors; Security metal detectors; weight checking machine etc. which are widely used in food, textile,
chemical pharmaceutical, mining, security industries. Our industrial metal detectors series are mainly being
used for detecting various breakage needle, steel wire, lead, copper, stainless steel and other colored
metals that drop in raw materials or products in the field of toys, costumes, shoemaking, chemical
industries, leather, knitting.
We also produce underground metal detectors walk through metal detectors and handheld metal detectors, X-rayscanners



FAQ

1. Are you manufacturer or trade Company?

We are a factory founded in 2005 with trade team for international service.



2. What terms of payment you usually use?
T/T 30% deposit and 70% against document, Western Union, L/C at sight



3. what is your lead time for your goods?
Normally 7 days after confirmed order.



4. Do you attend any Show?
We attend SPOGA show in Germany, Canton fair in China and many other special furniture shows.
